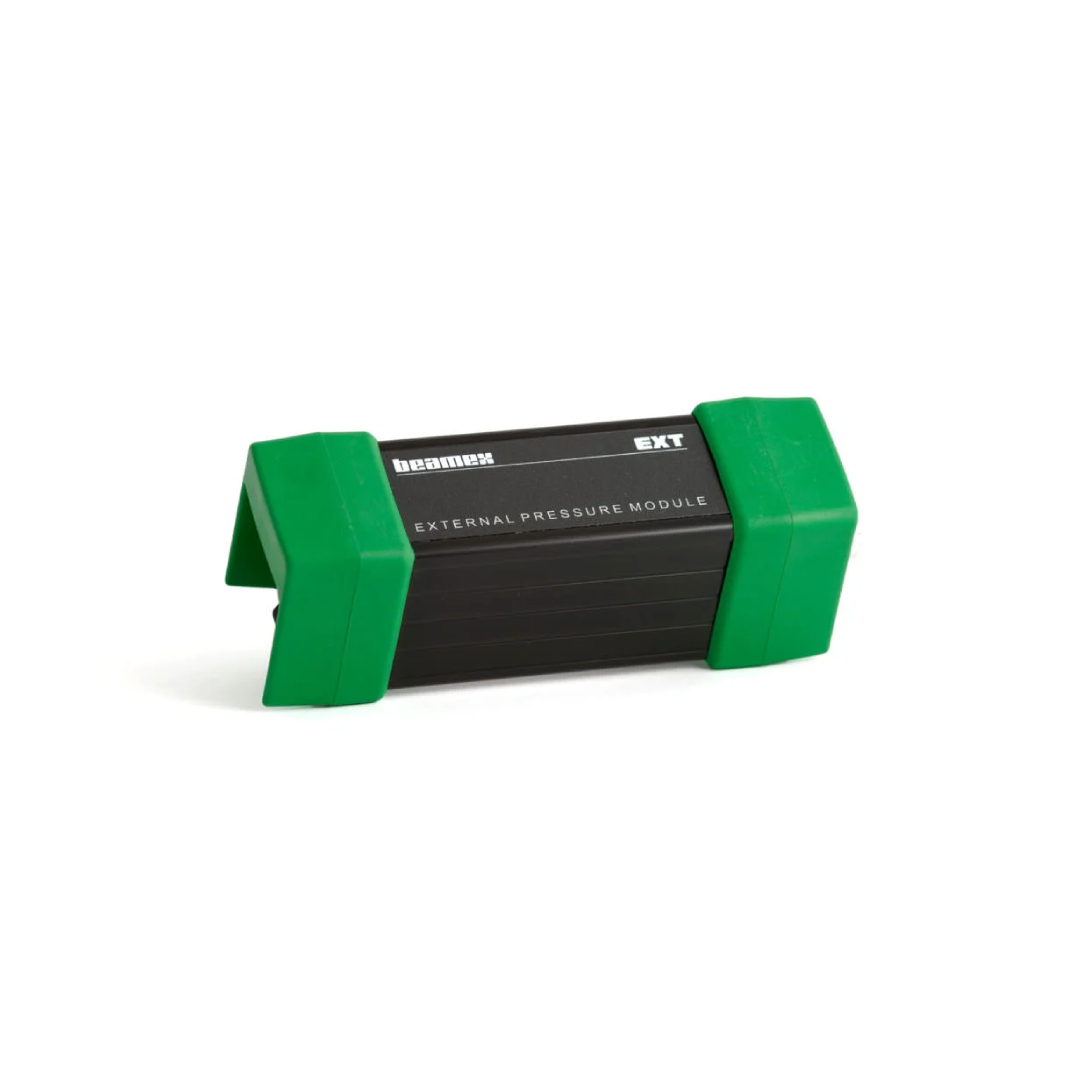

Beamex EXTB
EXTERNAL PRESSURE MODULE
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | - | - | - | - |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $0.00 | $0.00 | $0.00 | $0.00 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Contact us on 1300 601 670 for fantastic long term hire rates.
Temperature coefficient±0.001% Rdg/ °C outside 15…35 °C (59…95 °F)
INT10mD / EXT10mD < ±0.002% Span/ °C outside 15…35 °C (59…95°F)
- IS version available for all external pressure modules
- Every internal/external pressure module’s range may also be displayed in absolute pressure if the Barometric Module (B) is installed.
- ‘Accuracy’ includes hysteresis, nonlinearity, repeatability and reference standard uncertainty (k=2).
- ‘1 Year Uncertainty’ includes hysteresis, nonlinearity, repeatability and typical long-term stability for mentioned period (k=2).
All external pressure modules (EXT) are also compatible with Beamex MC6, MC5, MC4, MC2 and MC5P calibrators. All intrinsically safe external pressure modules (EXT-IS) are compatible with Beamex MC5-IS and MC2-IS calibrators.
Supports the following pressure units as standard:
Pa, hPa, kPa, MPa, mbar, bar, lbf/ft2, psi, gf/cm2, kgf/cm2, kgf/m2, kp/cm2, at, mmH2O, cmH2O, mH2O, iwc, ftH2O,
mmHg,
cmHg, mHg, inHg, mmHg(0 °C), inHg(0 °C),
mmH2O(4 °C), inH2O(4 °C), ftH2O(4 °C), inH2O(60°F), mmH2O(68°F), inH2O(68°F), ftH2O(68°F), torr, atm.
INT B / EXT B; M5 (10/32”) female.
INT10mD and EXT10mD; Two M5 (10/32”) female threads with a hose nipple included.
INT100m/EXT100m – INT20C/EXT20C; G1/8” (ISO228/1) female. A conical 1/8” BSP male with 60° internal cone adapter
included for Beamex hose set.
INT60, INT100, INT160; G1/8” (ISO228/1) female. EXT60, EXT100, EXT160, EXT250, EXT600, EXT1000; G ¼” (ISO228/1)
male.
Wetted parts AISI316 stainless steel, Hastelloy, Nitrile rubber.
Maximum overpressure;
B module; 1200 mbar abs. 10mD module; 200 mbar. EXT600; 900 bar. EXT1000; 1000 bar.
For all other modules, the maximum overpressure is twice the nominal range.
