Everest RUP-502
RESCUE TRIPOD
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | - | - | - | - |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $0.00 | $0.00 | $0.00 | $0.00 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Committing to 3, 6 or 12 months?
Contact us on 1300 601 670 for fantastic long term hire rates.
Contact us on 1300 601 670 for fantastic long term hire rates.

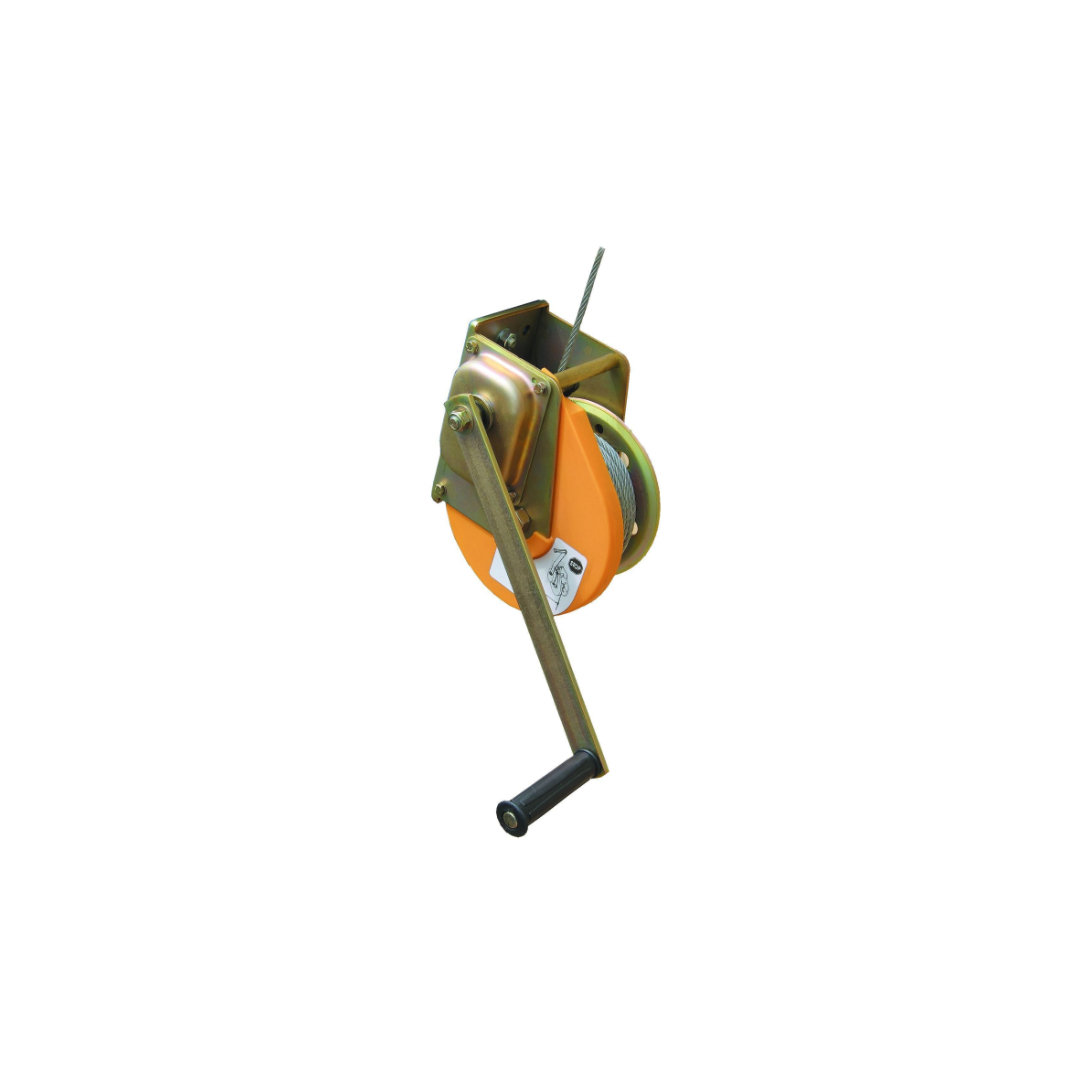

WORKSafe® RUP-502 RESCUE LIFTING DEVICE 25M
RUP 502 is a winch equipped with a clamp for mounting on tripod leg. The winch is equipped with six-strand steel
cable with natural fibre kern of 20 and 25 m in length and 6.3 mm in diameter; RUP 502 is a component of rescue
equipment. The device, can be lifted from a lower level onto a higher level or vice-versa. The descent distance
cannot be more than 2 m.
With the ratio used in the mechanism it is possible to make one turn of the drum per 5 turns of the winch’s crank.
The crank arm is available in 2 lengths which, depending of the variant chosen, enable torque adjustment.
- Rescue lifting and lowering device.
- Automatic brake.
- Steel galvanized cable of diameter 6.3mm.
- Available in 20m and 25m length.
- Weight: 13kg.
- Working load: 140kg.
- Tested and approved to EN1496 Class B standards.
- Spring-type energy absorber SDW
- Pulley PL 101
- TM 9
- TM 9-L
- TM 9-W
