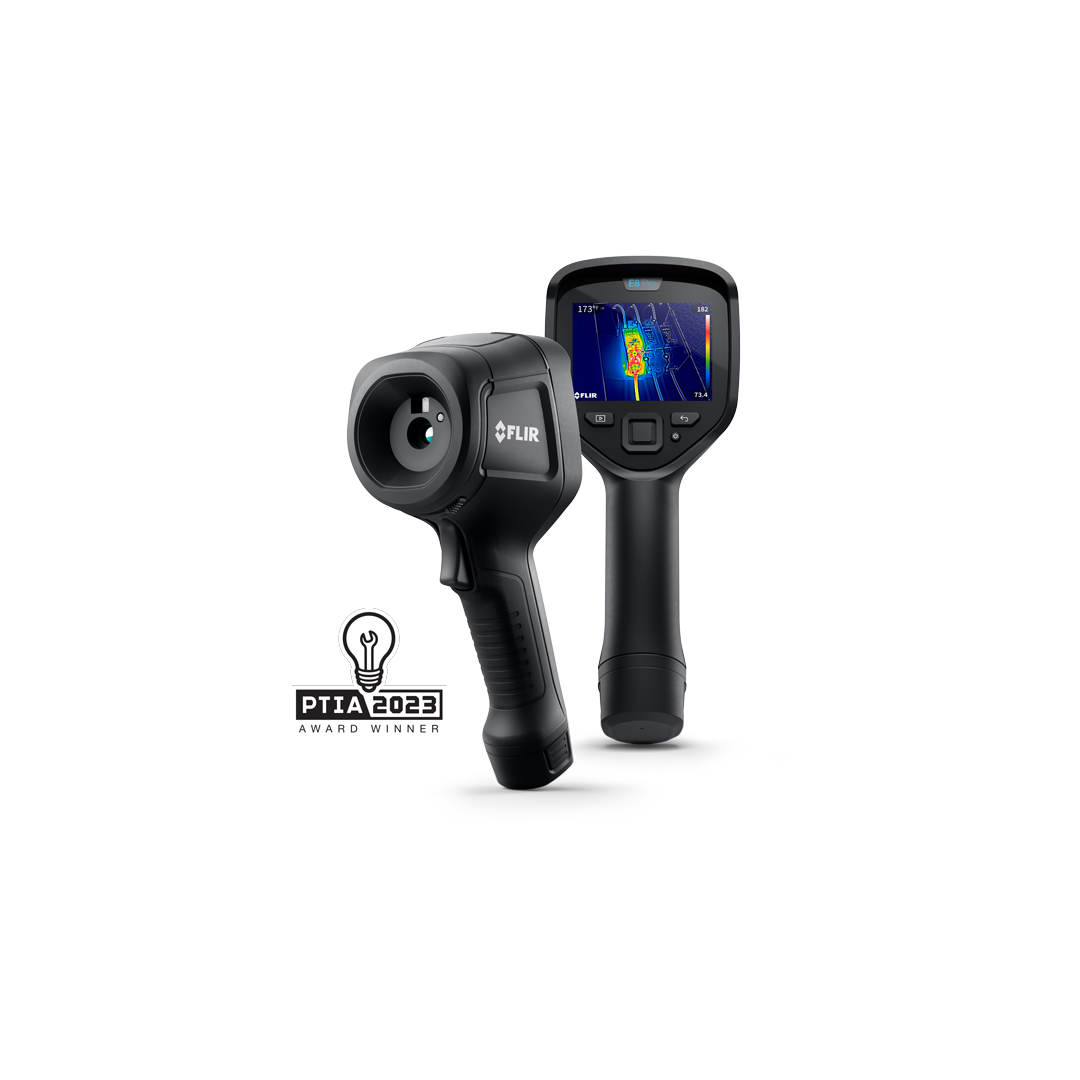

Flir E8-XT
Thermal Imaging Infared Camera
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | $135.00 | $77.14 | $77.14 | $77.14 |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $945.00 | $1,079.96 | $2,237.06 | $2,314.20 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Committing to 3, 6 or 12 months?
Contact us on 1300 601 670 for fantastic long term hire rates.
Contact us on 1300 601 670 for fantastic long term hire rates.
DESCRIPTION
FLIR E8-XT is the perfect tool for quickly locating and diagnosing electrical, mechanical, and building problems, thanks to its 76,800 (320 x 240) pixel infrared detector and expanded, -20°C to 550°C (-4°F to 1022°F) temperature range. FLIR MSX® image enhancement provides extraordinary thermal imaging detail, while the built-in WiFi allows users to quickly connect with the FLIR Tools® Mobile app for sharing images and sending reports easily from any location.PROFESSIONAL FEATURES AT AN AFFORDABLE PRICE The FLIR E8-XT with Extended Temperature Range features 320 × 240 (76,800 pixels) thermal resolution ±2% accuracy, hot/cold spot measurements, and emissivity controls that meet the needs of your application and your budget.
EASY TO USE With an always-in-focus lens, simple one button image capture, and intuitive navigation screens you can operate with one hand, an Ex-Series camera is a tool you can start using out of the box.
RUGGED AND DEPENDABLE With a 4 hr operating time, interchangeable batteries, 2 m (6.6 ft) drop test, and IP54 rating, an Ex-Series camera is the perfect addition to your tool bag.
SPECIFICATIONS
| FLIR E8xt General Specifications | |
| Detector Type | Uncooled microbolometer |
| IR Resolution | 320 × 240 pixels |
| List of Contents |
•Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation |
| Packaging Size | 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in) |
| Set-up Commands | Local adaptation of units, language, date and time formats |
| Spectral Range | 7.5–13 µm |
| Compliance & Certifications | |
| Certifications | UL, CSA, CE, PSE and CCC |
| Connections & Communications | |
| AC Operation | AC adapter, 90–260 VAC input, 5 VDC output to camera |
| Interface | USB Micro: Data transfer to and from PC and Mac device |
| WiFi | •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm |
| Environmental | |
| EMC | •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 h 95% relative humidity |
| Operating Temperature Range | –15°C to 50°C (+5°F to 122°F) |
| Radio Spectrum | •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | –40°C to 70°C (–40°F to 158°F) |
| Vibration | 2 g (IEC 60068-2-6) |
| Emissivity table/correction | Emissivity table of predefined materials/variable from 0.1 to 1.0 |
| Encapsulation/Drop | IP 54 (IEC 60529)/2m (6.6 ft.) |
| Imaging & Optical | |
| Camera size (L x W x H) | 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in) |
| Camera weight incl battery | 0.575 kg (1.27 lb.) |
| Color | Black and gray |
| Color palettes | Black & white, iron, and rainbow |
| f-number | 1.5 |
| Field of view (FOV) | 45° × 34° |
| Focus | Focus free |
| Image Adjustment | Automatic adjust/lock image |
| Image Frequency | 9 Hz |
| Image Modes | Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera. |
| Minimum Focus Distance | 0.5 m (1.6 ft.) |
| Multi Spectral Dynamic Imaging (MSX) | IR image enhanced with visible camera detail |
| Picture-in-Picture | IR area on visual image |
| Spatial resolution (IFOV) | 2.6 mrad |
| Digital Camera Resolution/FOV | 640 × 480/55° × 43° |
| Measurement & Analysis | |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
| Isotherm | Above alarm, below alarm |
| Object Temperature Range | –20°C to 550°C (-4°F to 1022°F) in two ranges |
| Reflected apparent temperature correction | Automatic, based on input of reflected temperature |
| Spot Meter | Center spot; box with min./max. |
| Thermal Sensitivity/NETD | <0.05°C (0.09°F) / <50 mK |
| Spotmeter and Area | Center spot; box with min./max. |
| Meter Data | |
| Display | 3.0 in. 320 × 240 color LCD |
| Power | |
| Charging system | Battery is charged inside the camera or in specific charger. |
| Charging Time | 2.5 hours to 90% capacity in camera. 2 hours in charger. |
| Power Management | Automatic shut-down |
| Battery type & operating time | Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use |
| Storage Media | |
| File Formats | Standard JPEG, 14-bit measurement data included |
