Fluke 376 FC

TRUE-RMS CLAMP METER

DAILY RATES
Cost per Day	-	-	-	-
Duration (days)	1-7	8-14	15-29	30

TYPICAL HIRE PERIODS
Cost	$0.00	$0.00	$0.00	$0.00
Duration	7 Days	14 Days	29 Days	30 Days

Committing to 3, 6 or 12 months?
Contact us on 1300 601 670 for fantastic long term hire rates.

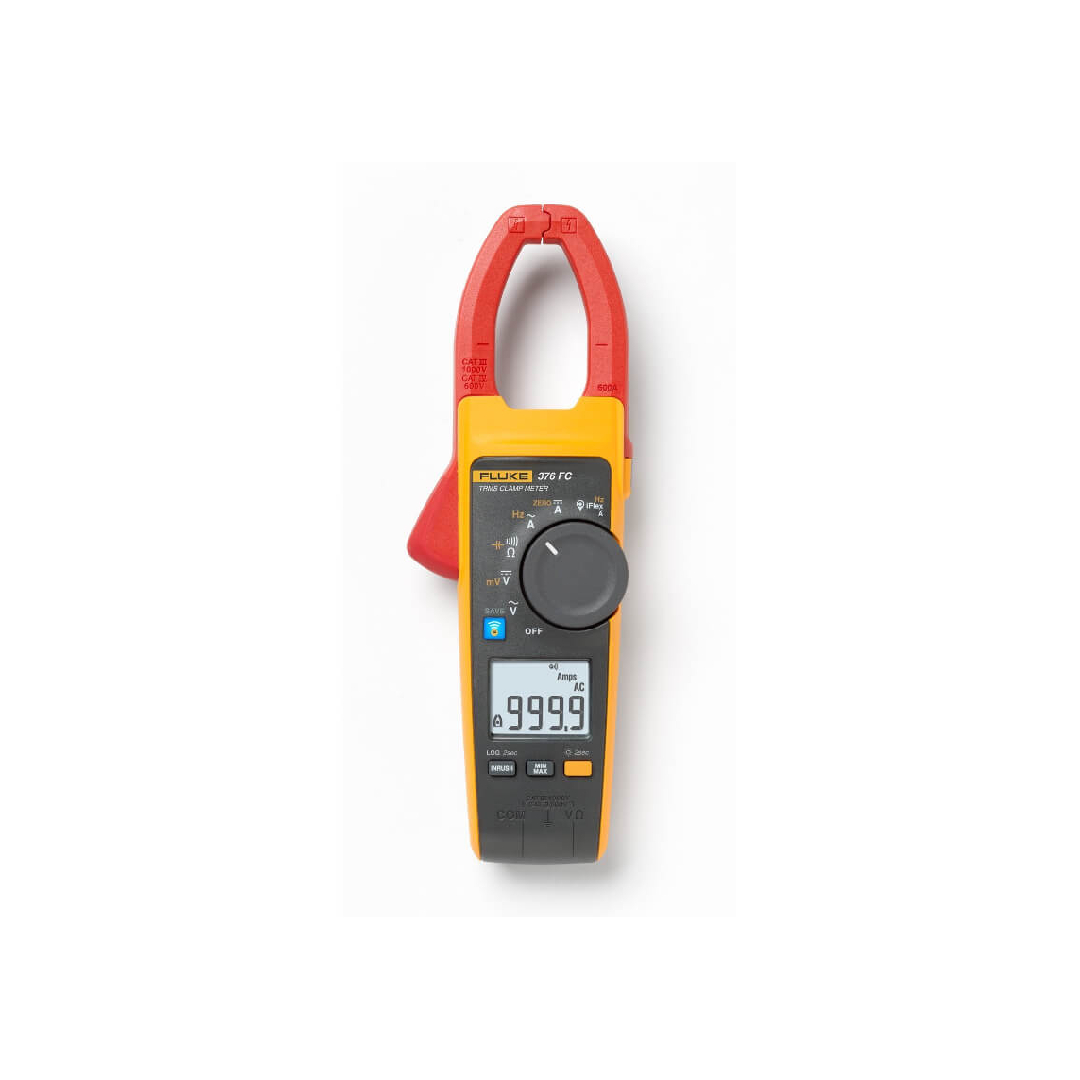

Product overview: Fluke 376 FC True-RMS Clamp Meter with iFlex

The Fluke 376 FC True-rms Clamp Meter with iFlex is the most advanced troubleshooting tool for industrial and commercial electricians. The 376 is part of the Fluke Connect family of wireless test tools that enable you to log, trend and monitor measurements while remaining safely away from the arc flash zone through Bluetooth connectivity.

Find the cause of difficult problems

The 376 FC clamp meter uses an integrated low-pass filter for accurate measurements of non-linear signals, such as adjustable speed drives, electronic ballasts and other non-linear loads. The clamp also uses proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it.

Measure:

Voltage to 1000 V AC or DC
Resistance to 60 kΩ with continuity detection
Min, max, average, and inrush recording to capture variations automatically
500 mV DC measurement range to interface with other accessories
1000 μF capacitance measurement
Work safely and conveniently
The 376 FC clamp carries a CAT III 1000 V, CAT IV 600 V safety rating, designed to offer you the highest possible protection in a test tool.

The included 18-inch or 36-inch iFlex flexible current probe provides easier access to large conductors in tight spaces. The flexible probe:

Expands the measurement range to 2500 A AC
Allows frequency measurement to 500 Hz with body jaw and iFlex

Specifications: Fluke 376 FC True-RMS Clamp Meter with iFlex

General Specifications
AC Current via Jaw
Range				999.9 A
Resolution				0.1 A
Accuracy				2% ±5 digits (10 Hz to 100 Hz)
				2.5% ±5 digits (100-500 Hz)
Crest Factor (50 Hz/60 Hz)				3 @ 500 A
				2.5 @ 600 A
				Add 2% for C.F. >2
AC Current via Flexible Current Probe
Range				2500 A
Resolution				0.1 A (≤ 600 A)
				1 A (≤ 2500 A)
Accuracy				3% ±5 digits (5 – 500 Hz)
Crest Factor (50/60Hz)				3.0 at 1100 A
				2.5 at 1400 A
				1.42 at 2500 A
				Add 2% for C.F. > 2
Flexible current probe
	i2500-10 Flex		0-18 Flex		i2500-36 Flex
A
Distance from Optimum	0.5 in (12.7 mm)		1.4 in (35.6 mm)		4.8 in (122.2 mm)
Error	±0.5 %		±0.5 %		±0.5 %
B
Distance from Optimum	0.8 in (20.3 mm)		2.0 in (50.8 mm)		5.3 in (133.6 mm)
Error	±1.0 %		±1.0 %		±1.0 %
C
Distance from Optimum	1.4 in (35.6 mm)		2.5 in (63.5 mm)		5.8 in (147.6 mm)
Error	±2.0 %		±2.0 %		±2.0 %
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range		999.9 A
Resolution		0.1 A
Accuracy		2% ±5 digits
AC Voltage
Range		1000 V
Resolution		0.1 V (≤600.0 V)
		1 V (≤1000 V)
Accuracy		1% ±5 digits (20 Hz to 500 Hz)
DC Voltage
Range		1000 V
Resolution		0.1 V (≤600.0 V)
		1 V (≤1000 V)
Accuracy		1% ±5 digits
mV dc
Range		500.0 mV
Resolution		0.1 mV
Accuracy		1% ±5 digits
Frequency via Jaw
Range		5.0 Hz to 500.0 Hz
Resolution		0.1 Hz
Accuracy		0.5% ±5 digits
Trigger level		5 Hz to 10 Hz, ≥10 A
		10 Hz to 100 Hz, ≥5 A
		100 Hz to 500 Hz, ≥10 A
Frequency via Flexible Current Probe
Range		5.0 Hz to 500.0 Hz
Resolution		0.1 Hz
Accuracy		0.5% ±5 digits
Trigger level		5 Hz to 20 Hz, ≥25 A
		20 Hz to 100 Hz, ≥20 A
		100 Hz to 500 Hz, ≥25 A
Resistance
Range		60 kΩ
Resolution		0.1 Ω (≤600 Ω)
		1 Ω (≤6000 Ω)
		10 Ω (≤60 kΩ)
Accuracy		1% ±5 digits
Capacitance
Range		1000 μF
Resolution		0.1 μF (≤ 100 μF)
		1 μ F (≤ 1000 μF)
Accuracy		1% ±4 digits
Mechanical Specifications
Maximum voltage between any terminal and earth ground		1000 V
Batteries		2 AA, NEDA 15A, IEC LR6
Operating temperature		-10 °C to +50 °C
Storage temperature		-40 °C to +60 °C
Operating humidity - non-condensing (< 10°C)		≤90% RH (at 10 °C to 30 °C)
		≤75% RH (at 30 °C to 40 °C)
		≤45% RH (at 40 °C to 50 °C)
Operating altitude		2000 m
Storage altitude		12,000 m
Size (L x W x H)		249 x 85 x 45 mm
Weight		395 g
Jaw opening		34 mm
Flexible current probe diameter		7.5 mm
Flexible current probe cable length (head to electronics connector)		1.8 m
Safety		IEC 61010-1, Pollution Degree 2
		IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V
		IEC 61010-2-033:CAT III 1000 V / CAT IV 600 V

IP rating		IEC 60529: IP30, non-operating
Radio Frequency Certification FCC ID		T68-FBLE IC:6627A-FBLE
Electromagnetic Compatibility (EMC)
International		IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2
		CISPR 11: Group 1, Class A
		Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
		Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purpose. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object.
Korea (KCC)		Class A Equipment (Industrial Broadcasting & Communication Equipment)
		Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
USA (FCC)		47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Temperature coefficients		Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C
