Fluke 9103
Low Temperature Field Drywell
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | $121.00 | $108.90 | $90.75 | $76.23 |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $847.00 | $1,524.60 | $2,631.75 | $2,286.90 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Contact us on 1300 601 670 for fantastic long term hire rates.

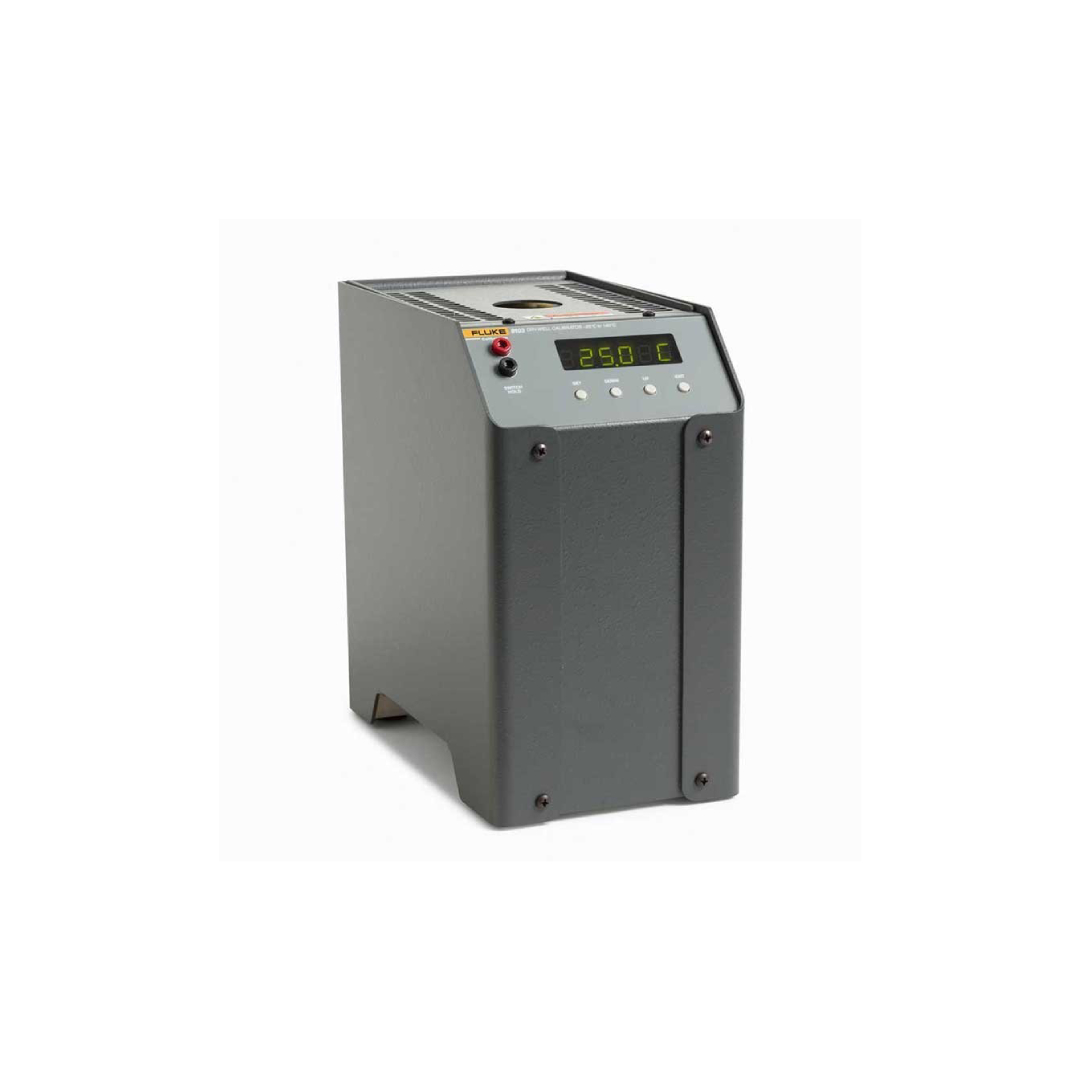

Product overview: Fluke Calibration 9103/9140 Field Dry-Well
Great performance in portable instruments
- Lightweight and very portable
- Accuracy to ±0.25 °C
- RS-232 and Interface-it software included
- Easy to recalibrate
If you’ve been using dry-well calibrators for field work, you know there’s a lot more to a dry-well than its temperature range and stability. Size, weight, speed, convenience, and software are also significant.
Field dry-wells need to be portable, flexible, and suitable for high-volume calibrations or certifications. If they’re not, you’ll soon forget about the great stuff the sales rep told you and realize what you’ve really bought.
At Hart Scientific, we use dry-wells every day in our manufacturing and calibration work, and we know what makes a dry-well easy and productive to use—which is exactly how users describe our series of field dry-wells. These dry-wells work for you instead of the other way around.
Specifications: Fluke Calibration 9103/9140 Field Dry-Well
| Specifications | 9103 | 9140 |
| Range | –25°C to 140°C (–13°F to 284°F) at 23°C ambient |
35°C to 350°C (95°F to 662°F) |
| Accuracy | ±0.25°C (holes greater than 1/4" [6.35mm]: ±1°C) | ±0.5°C (holes greater than 1/4" [6.35mm]: ±1°C) |
| Stability | ±0.02°C at –25°C ±0.04°C at 140°C |
±0.03°C at 50°C ±0.05°C at 350°C |
| Well-to-well uniformity | ±0.1°C between similarly sized wells | ±0.1°C with similarly sized wells |
| Heating times | 18 minutes from ambient to 140°C | 12 minutes from ambient to 350°C |
| Cooling times | 20 minutes from ambient to –25°C | 15 minutes from 350°C to 100°C |
| Stabilization time | 7 minutes | 7 minutes |
| Immersion depth | 124 mm (4.875 in) | 124 mm (4.875 in) |
| Inserts | Insert A, B, C, or D included (specify when ordering) | |
| Outside insert dimensions | 31.8 mm dia. x 124 mm (1.25 x 4.88 in) | |
| Computer interface | RS-232 included with free Interface-it software (Model 9930) | |
| Power | 115 V AC (±10%), 1.3 A or 230 V AC (±10%), 0.7 A, switchable, 50/60 Hz, 150 W | 115 V AC (±10%), 4.4 A or 230 V AC (±10%), 2.2 A, switchable, 50/60 Hz, 500 W |
| Size (W x H x D) | 143 x 261 x 245 mm (5.63 x 10.25 x 9.63 in) |
152 x 86 x 197 mm (6 x 3.375 x 7.75 in) |
| Weight | 5.7 kg (12 lb) | 2.7 kg (6 lb) |
| NIST-traceable certificate | Data at –25°C, 0°C, 25°C, 50°C, 75°C, 100°C, and 140° | Data at 50°C, 100°C, 150°C, 200°C, 250°C, 300°C, and 350°C |
