Fluke CFP2-100-Q-AP
Certifiber Pro Quad Optical Loss Test Set (OLTS)
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | $203.50 | $183.15 | $152.63 | $128.21 |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $1,424.50 | $2,564.10 | $4,426.27 | $3,846.30 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Committing to 3, 6 or 12 months?
Contact us on 1300 601 670 for fantastic long term hire rates.
Contact us on 1300 601 670 for fantastic long term hire rates.

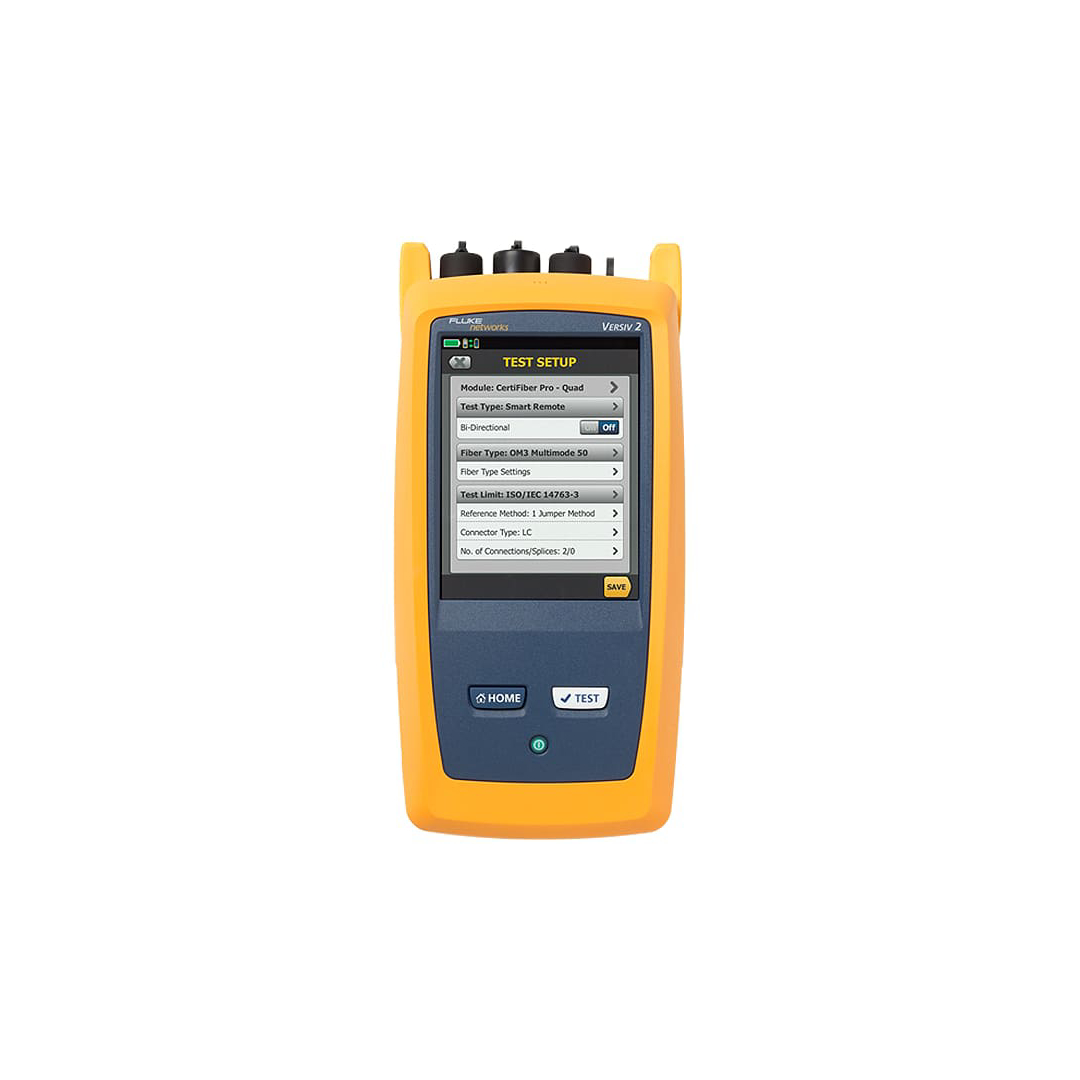

Fluke Networks CFP2-100-Q CertiFiber Pro Quad OLTS V2 with Wi-Fi
- Automatic pass/fail analysis
- Identifies incorrect test procedures
- Graphical indication of problem areas
- Interchangeable power meter adapters available for all typical connector types (SC, ST, LC and FC)
The Fluke Networks CertiFiber Pro Optical Loss Test Set (OLTS) helps cabling professionals accomplish more
than ever. It's all about accurate, error-free certification, making jobs easier to manage and certifying
fiber optic cabling to industry standards, faster. CertiFiber Pro OLTS complies with all applicable cabling
standards, which call out the new Encircled Flux launch condition requirements for optical sources. It's not
just for the expert technicians and Project Managers. Individuals of various skill levels can improve the
set-up, operation, test reporting, and simultaneously manage diverse projects.
Performance:
- Three-second Autotest optical loss measurement of two fibers at two wavelengths with distance measurement and optical loss budget calculation
- Provides automatic Pass/Fail analysis to industry standards or custom test limits
- Identifies incorrect test procedures resulting in negative loss readings
- Double ended Pass/Fail certification of fiber optic connector endfaces
- Graphical indication of problem areas on fiber endfaces due to contamination, pits, chips and scratches
- Interchangeable power meter adapters available for all typical connector types (SC, ST, LC and FC) to enable the most accurate 1-jumper reference method
- Built-in visual fault locator for basic troubleshooting and polarity determination
- Dual wavelength measurement capability on a single fiber allows the tester to be used in applications that require only one fiber link
- Compliant with TIA-526-14-B and IEC 61280-4-1 Encircled Flux requirements with no additional equipment or procedures
Standards:
- Allows combined OLTS Tier 1 (basic), OTDR Tier 2 (extended) certification, end-face inspection and reporting when paired with OptiFiber Pro OTDR
- Set reference wizard verifies test reference cords (TRCs) per ISO/IEC 14763-3 and eliminates negative loss errors
- Encircled Flux compliant optical launch conditions as required by ANSI/TIA and ISO/IEC standards for testing multimode fiber
- Certify fiber optic endfaces to industry standards - IEC 61300-3-35
Detailed View of Fiber Results
View the results of each fiber tested at the same time and the Pass/Fail status on the test results screen.
Easily identify the fiber type, test limits, loss and which fiber correlates to each result. All good results
are highlighted with a green icon, any faulty events are highlighted with red icons and fibers are identified
as output or input to facilitate quick identification and corrective action. The Taptive user interface also
makes the results screen a powerful tool with a detailed window which can be touched to drill down and see
detailed results.
The screen below shows margin and limit values in the window. Simply tap the screen to drill into specific
results as shown in second image.
Manufacturer Specs
| Fluke Networks CertiFiber Pro Optical Loss Test Set Specifications | ||
| Power Meter Specifications | ||
| Input Connector | Interchangeable connector adapter (LC standard, SC, ST and FC optional) | |
| Detector Type | InGaAs | |
| Wavelengths | 850 nm, 1300 nm, 1310 nm, 1550 nm | |
| Power Measurement Range | 0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths) | |
| Power Measurement Uncertainty1,2 | < +/- 5% +/- 32 pW | |
| Measurement Linearity3 | < ± 0.1 dB | |
| Re-calibration Period | 1 year | |
| 1. +/- 100 pW at 850 nm 2. Under the following conditions: Power level 100 μW (-10 dBm), continuous wave (CW) for absolute power at 850 nm and 1310 nm. Divergent beam, NA = 0.20 for 50/125 μm and NA = 0.14 for 9/125 μm. Ambient temperature 23° ± 1°C. SC/UPC connector with ceramic ferrule. After a 5 minute warm-up. Traceable to NIST. 3. -3 dBm to -55 dBm at 850 nm and 1310 nm. Ambient temperature 23° ± 1°C. After a 5 minute warm-up. |
||
| Loss/Length Specifications | ||
| Specification | CertiFiber Pro Multimode Modules | CertiFiber Pro Singlemode Modules |
| Testing Speeds (excludes referencing times) | Smart Remote mode: < 3 seconds (2
wavelengths, one direction, auto wavelength detection) Far End Source mode: ≤ 2 seconds (2 wavelengths, one direction auto wavelength detection) Loopback mode: ≤ 2 seconds (2 wavelengths, one direction auto wavelength detection) |
|
| Input/Output Connectors | Interchangeable connector adapter (LC standard, SC, ST and FC optional) | |
| Launch Condition1,2 | Encircled Flux compliant to TIA-526-14-B, ISO/IEC 14763-3 and IEC 61280-4-1 | |
| Fiber Types Tested | 50/125 µm or 62.5/125 µm | singlemode |
| Source Type and Wavelengths | LED source 850 nm ± 30 nm 1300 nm ± 20 nm | Fabry-Perot laser diode 1310 nm ± 20 nm 1550 nm ± 30 nm |
| Maximum Length Measurement | 12 km | 130 km |
| Length Measurement Accuracy | ± 1.5 m plus ± 1 % of length | ± 1.5 m plus ± 1 % of length |
| Output Power (Nominal) | ≥ -24 dBm with EF-TRC | ≥ -4 dBm |
| Output Power Stability3 | ± 0.05 dB over 8 hours ± 0.03 dB over 15 minutes | ± 0.1 dB over 8 hours ± 0.08 dB over 15 minutes |
| 1. At the output of the EF-TRC 2. Variations between EF measurement equipment may occur but EF compliance can be expected with a 95% confidence factor 3. Relative to power level after 15 minute warm up – at constant temperature |
||
| Loss/Length Specifications (continued) | ||
| Source Wavelengths | 850 nm, 1300 nm, 1310 nm, 1550 nm | |
| Power Measurement Range | 0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths) | |
| Power Measurement Uncertainty1, 2 | < +/- 5% +/- 32 pW | |
| Measurement Linearity3 | < ± 0.1 dB | |
| Re-calibration Period | 1 year | |
| 1. +/- 100 pW at 850 nm 2. Under the following conditions: Power level 100 μW (-10 dBm), continuous wave (CW) for absolute power at 850 |
||
| Selected Specifications | ||
| Visual Fault Locator (VFL) | ||
| Title | Requirement | |
| Output Power | >-5 dBm <0 dBm SMF-28 singlemode fiber Continuous wave SC/UPC connector |
|
| Operating Wavelength | 650 nm nominal | |
| Output Modes | Continuous wave Pulsed mode (2 Hz to 3 Hz blink frequency) |
|
| Connector Adapter | 2.5 mm universal | |
| Laser Safety | Class II CDRH Over operating temperature range |
|
| Environmental Specifications | ||
| Title | Requirement | |
| Operating Temperature | -18° C to 45° C | |
| Storage Temperature | -30° C to +60° C | |
| Operating Relative Humidity % RH without condensation |
0 % to 90 %, 32 °F to 95 °F (0° C to 35°
C) 0 % to 70 %, 95 °F to 113 °F (35° C to 45° C) |
|
| Vibration | Random, 2 g, 5 Hz-500 Hz | |
| Shock | 1 m drop test with and without module and adapters | |
| Safety | CSA C22.2 No. 1010.1: 1992 EN 61010-1 1st Edition + Amendments 1, 2 |
|
| Pollution Degree | 2 | |
| Altitude | Operating: 4,000 m; storage: 12,000 m | |
| EMC | EN 61326–1 | |
