Hearthill SLS3-4T
4TONNE CABLE STAND
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | - | - | - | - |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $0.00 | $0.00 | $0.00 | $0.00 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Committing to 3, 6 or 12 months?
Contact us on 1300 601 670 for fantastic long term hire rates.
Contact us on 1300 601 670 for fantastic long term hire rates.

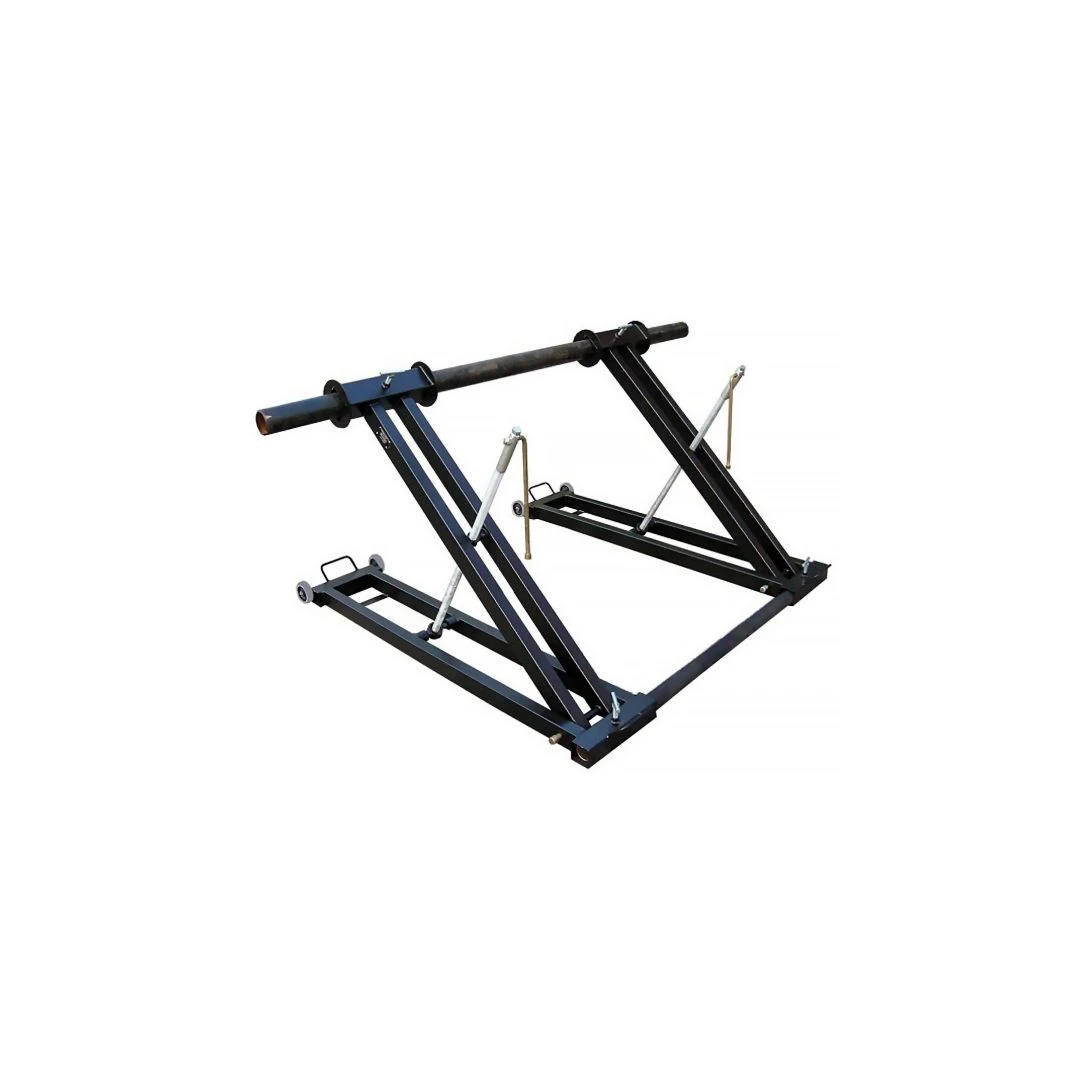

Hearthill SLS3-4T Scissor Lift Cable Drum Jacks (Made in Australia)
The Scissor lift drum stands are well suited for uneven ground as the individual lifting screws can be adjusted separately.
- They are simple and easy to use and unlike their competition, sealed directional bearings (insert) aid the ease of lifting and lowering of cable drums.
Complete with two stands with wheels for transportation, collars to retain drums and a ground joining bar for rigidity during operation, along with a stamped and registered load bearing axle, the SLS is a very cost effective and efficient set of equipment.
Scissor Lift Stand Set Contents
- 1 x Pair of assembled scissor type lifting frames. Each with their own individual serial number per pair
- 1 x Pair of drum retaining collars to suit supplied drum spindle, used to retain cable drum during operation
- 1 x Drum spindle to bare drum load, identifiable by unique serial number stamped at one end
- 1 x Ground joining bar, to align and install the scissor lift set correctly (NA for SLS-05T)
- 1 x Certificate of compliance for scissor lift set
- 1 x Certificate of compliance for drum spindle
- 1 x Risk Assessment guide
| Model No. | SLS3-4T |
| A - Overall Length | 1780 mm |
| B - Folded Height | 265 mm |
| C - Width | 350 mm |
| D- Maximum Height | 1330 mm |
| E - Maximum Angle | 60° |
| Working Load Limit | 4000 Kg |
| Max. Drum Size | Ø2.6 m |
| Usable Spindle Length | 1600 mm |
| Spindle Diameter | Ø90 mm |
| Wieght of Each Half | 45 Kg |
