Megger MIT1020
10kV INSULATION RESISTANCE TESTER
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | - | - | - | - |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $0.00 | $0.00 | $0.00 | $0.00 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Contact us on 1300 601 670 for fantastic long term hire rates.

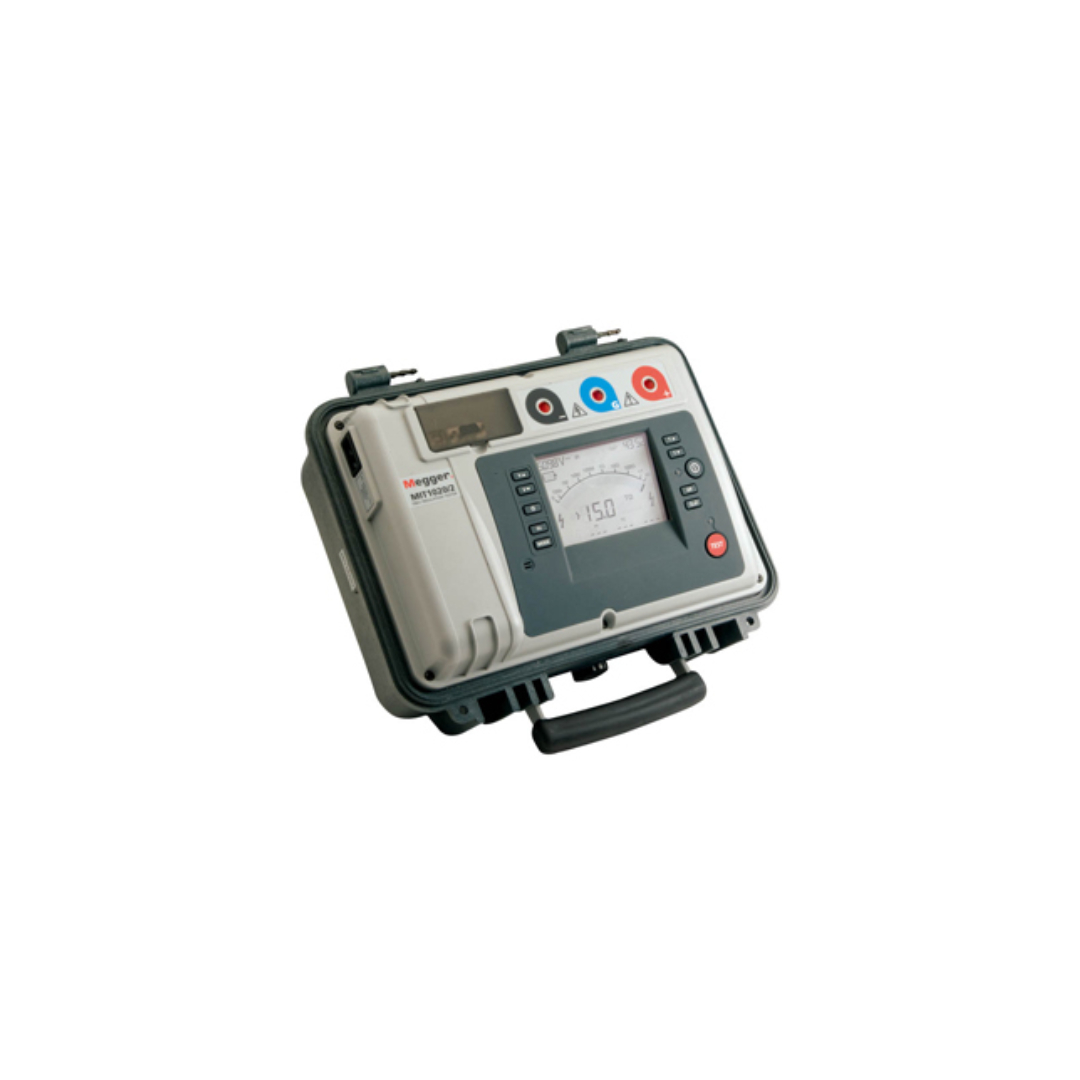

Introducing the new version of the popular MIT1020 by Megger. With the MIT1020/2, the operation of the instruments remains unchanged, but overall improvements have been made.
The new 10 kV insulation resistance testers from Megger is designed specifically to assist you with the testing and maintenance of high voltage electrical equipment. IEEE 43-2000 recommends the use of 10 kV for motor windings rated above 12 kV and the Megger MIT1020 facilitates this.
The case is incredibly rugged and easy to carry, being made of tough polypropylene and achieving an ingress protection rating of IP54. In addition, the model number is marked on both the top and side of the case for ease of identification in stores or vehicles.
The instruments have a large easy to read backlit LCD display making it equally suitable for use in both bright sunlight and poorly lit environments.
Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timers.
The instrument can test when being powered by the mains or its internal rechargeable battery, a great benefit when site conditions are unknown or long term testing is required.
The controls of the instrument are clear and unambiguous and a "quick start" guide is included in the lid of the instrument removing the need to carry bulky manuals under site conditions. The instrument is fitted with a guard terminal to enhance accuracy. The guard test lead is included as standard with the instrument.
To further enhance the flexibility of the instruments both have the facility to set the test voltage in steps from 50 V to the maximum output voltage avoiding the expense of several insulation resistance testers to meet your application needs.
These insulation test instruments are designed to meet the highest safety standards and meets the requirements of EN61010. In addition, the instruments measure the voltage at the terminals and if this is above 50 V then the instruments will display the high voltage warning and inhibit testing. At the end of the test the instruments will automatically discharge the energy transferred to the equipment during the test phase.
The MIT520 and MIT1020 are equally suited to routine testing and diagnostic regimes being pre-programmed with IR, PI, DAR, SV and DD profiles.
Manufacturer Specs
| Voltage Input Range: | 95 - 240 V ± -10% rms 50 / 60Hz and DC |
| Battery Life: | 4 hours continuous testing at 10 kV |
| Test Voltages: |
50 V to 1 kV in 10 V steps 1 kV to 5 kV in 25 steps |
| Accuracy: |
±5% to 1 T-ohm ±20% to 35 T-ohm |
| Guard: | 2% error guarding 500 K-ohm leakage with 100 M-ohm load |
| Display Range: |
Digital Display: 10 K-ohm to 35 T-ohm Analog Display: 100 K-ohm to 35 T-ohm |
| Short Circuit / Charge Current: | 3 mA |
| Capacitor Charge Time: | 25 seconds per µF at 3 mA |
| Capacitor Discharge Time: | 25 seconds per µF to discharge 10000V to 50V |
| Capacitance Measurement: | 1 nF to 50 µF (Dependent on measurement voltage) |
| Capacitance Measurement Accuracy: | ±5% ±5 nF |
| Voltage Output Accuracy: |
±2% ±1 V of nominal test voltage at 100 M-ohm load ±25 V for test voltages less than 500 V |
| Current Measurement Range: | ±0.01 nA to ±5 mA |
| Current Measurement Accuracy: | ±5% ±0.2 nA at all voltages |
| Display: | Analog / Digital 3 digits |
| Interference Rejection: | 1 mA rms per kV test voltage, 2 mA rms maximum |
| Timer Range: | Up to 99 minutes |
| Memory Capacity: | 32 kB |
| Test Regimes: | Auto IR, PI, DAR, SV, and DD |
| Lead Set: | Three Flexible silicon insulated leads with compact clamp |
| Ingress Protection: | IP65 |
Tech Specs
Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
| IR Test Voltage | 1,000 V, 10,000 V, 100 V, 2,000 V, 2,500 V, 25V, 400V, 5,000 V |
| Maximum Insulation Resistance | 35 T Ohms (35000 G Ohms) |
| Automated Test Results | Dielectric Absorption Ratio, Leakage Current, Other, Step Voltage |
| Type | Line |
| Minimum Insulation Resistance | 10 K Ohms (0.00001 G Ohms) |
| Variable Incremental Voltage | Yes |
| Continuity Test | No |
| Live Circuit Voltage Detection | Yes |
| Power Supply | Line Powered |
| Timer | Yes |
| CAT Rating | IV |
