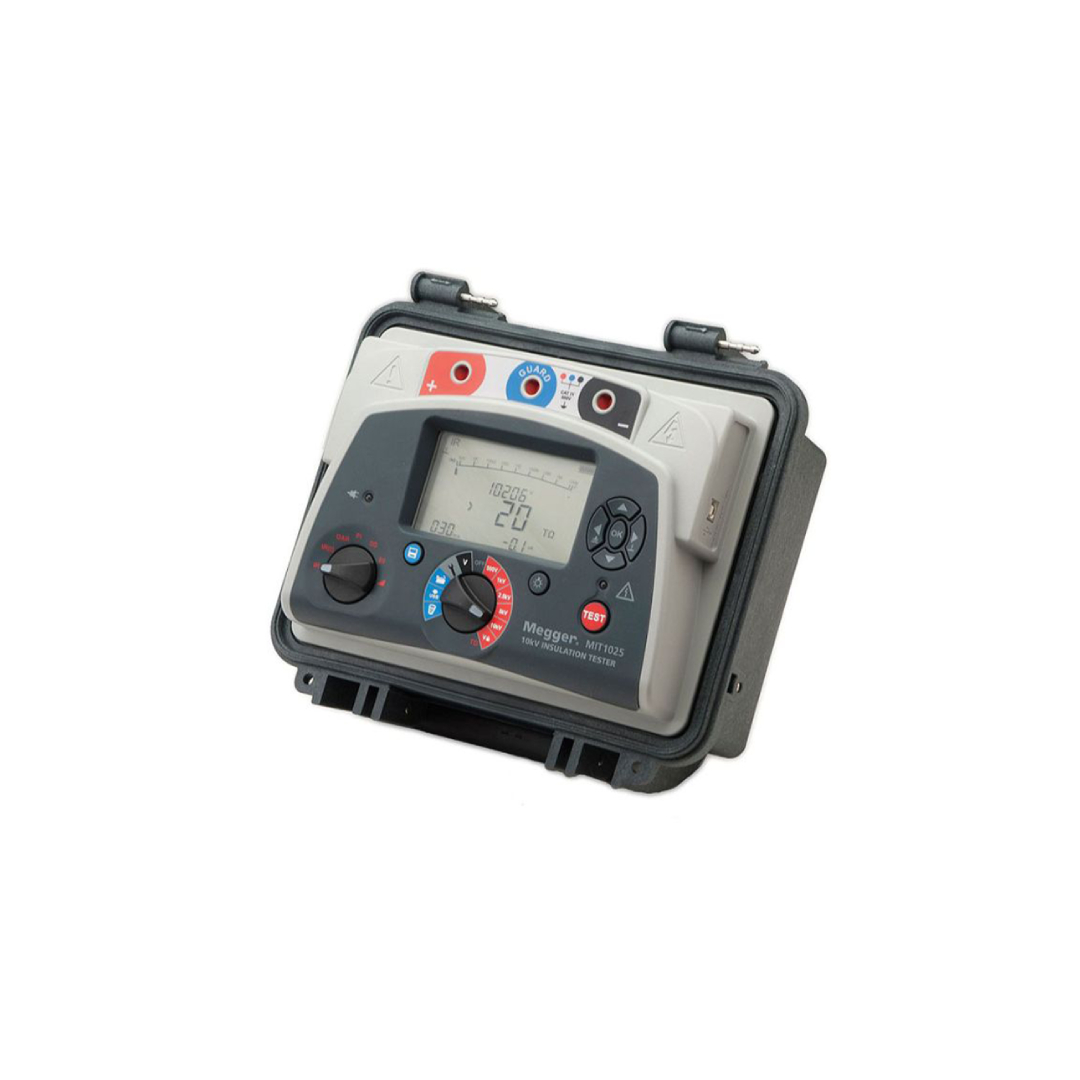

Megger MIT1025
10kV Insulation Resistance Tester
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | $121.00 | $108.90 | $90.75 | $76.23 |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $847.00 | $1,524.60 | $2,631.75 | $2,286.90 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Contact us on 1300 601 670 for fantastic long term hire rates.
About the product
The MIT515, MIT525, MIT1025, and MIT1525 insulation resistance testers are compact, light 5 to 15 kV units for the
diagnostic testing and maintenance of high voltage electrical equipment. They are ideal for original equipment
manufacturers (OEMs) and industrial companies.
The MIT series has a full suite of test modes as well as on-board memory and the ability to stream data/download
data to a PC/laptop. They also have rapid-charge batteries and operate from an AC source if the batteries are dead.
Rapid charge batteries enable >60 minutes of testing after a 30-minute charge.
The MIT range includes:
MIT515: 5 kV with IRT and DAR, but with no memory
MIT525: 5 kV IRT with all test modes, including a ramp test plus advanced memory functions with recall to screen,
RTC for time/date stamp of results, and USB drive to PC/PowerDB
MIT1025: 10 kV IRT with all test modes, including a ramp test plus advanced memory functions with recall to screen,
RTC for time/date stamp of results, and USB cable interface to PC/PowerDB
MIT1525: 15 kV IRT with all test modes, including a ramp test plus advanced memory functions with recall to screen,
RTC for time/date.
The MIT1525 is at the top of the range, and it performs insulation resistance tests up to 15 kV with a 30 TΩ maximum
resistance and an accuracy of ±5 % from 1 MΩ up to 3 TΩ.
Safety rated to CAT IV, all these units are smaller and lighter than their predecessors, making them even easier to
carry and store.
