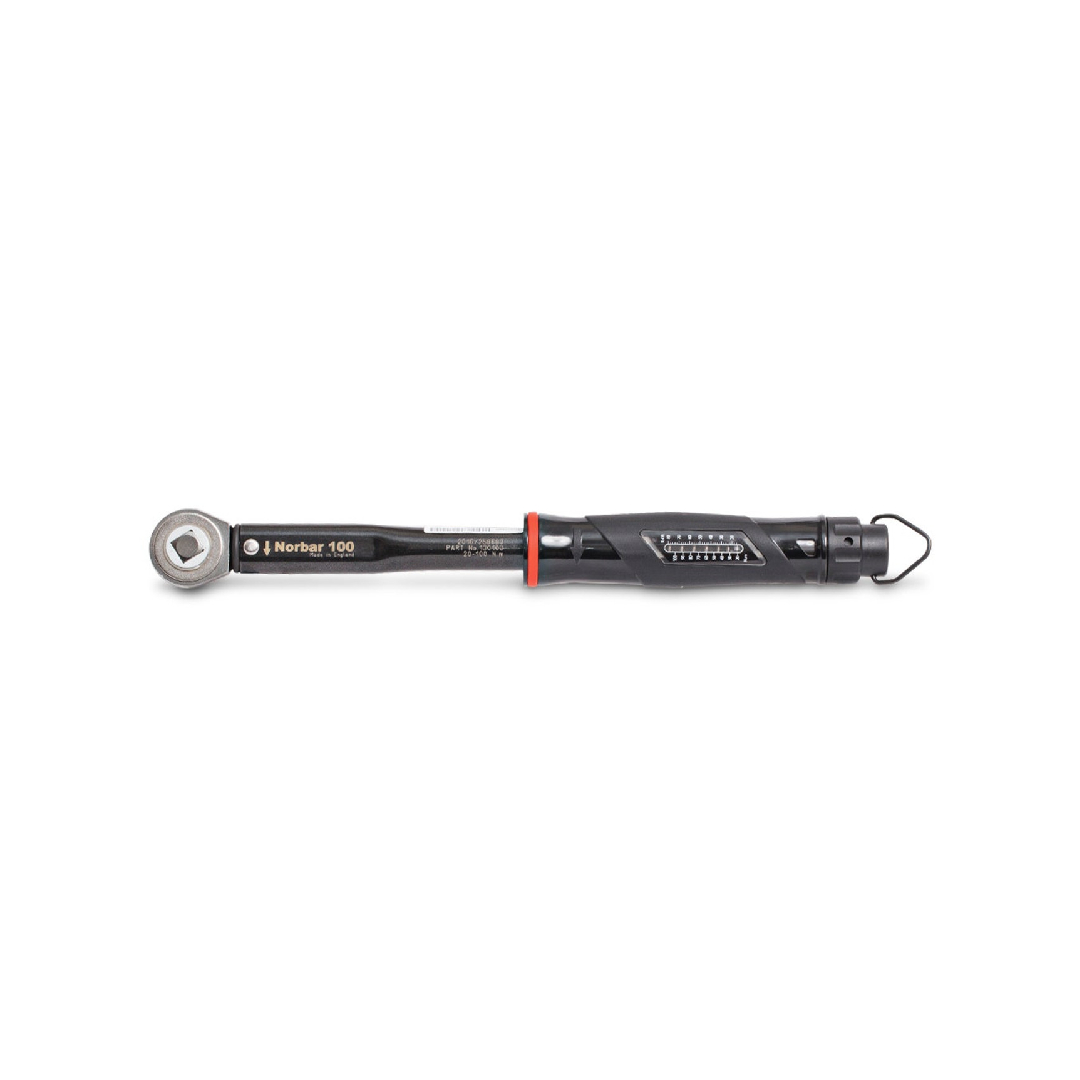

Norbar 20-100Nm 1/2″

DESCRIPTION

The NorTorque® utilises Norbar's proven mechanism and internal components and incorporates them into a purposeful and attractive torque wrench

In developing NorTorque®, Norbar's objective was to deliver outstanding quality and performance in a value for money package. Fine engineering ensures that the wrench adjustment is both fast and fingertip light meaning that you can do your job more efficiently.

Supplied with a Declaration of Conformance which meets the requirements ISO 6789-1:2017

Accurate to ±3% of reading with models available to cover 12 N·m to 300 N·m.

• Part number: 130103
• EAN Bar Code: 5060207565356
• NATO number: 5120-99-8434984
• Accuracy: ±3%
• Operates between: 20.00 - 100.00 N·m
  20.00 - 80.00 lbf·ft


FEATURES

• Push through ratchets with a narrow engagement angle of 5° for working in tight spaces
• Convenient hanger feature for tool storage also aids wrench unlocking and adjustment
• Just eight turns to cover the entire scale
• Micrometer scale applying to the primary torque units (N·m on a dual scale wrench) for simple and error free setting
• Push/pull lock is fast and intuitive to use and prevents accidental adjustment of the set torque
• Light and fast adjustment saves operator time and effort
• Supplied with a Declaration of Conformance, which meets the requirements of ISO 6789-1:2017

TECHNICAL SPECIFICATIONS

• Length: 375mm
• Weight: 0.8kg
• Ratchet Teeth: 72
• Square Drive: 1/2"
• Ratchet Diameter: 42mm
• Supplied with a 3/8" sq. dr. adaptor
• Scale Increments (N·m): 1
• Scale Increments (lbf·ft): 2
