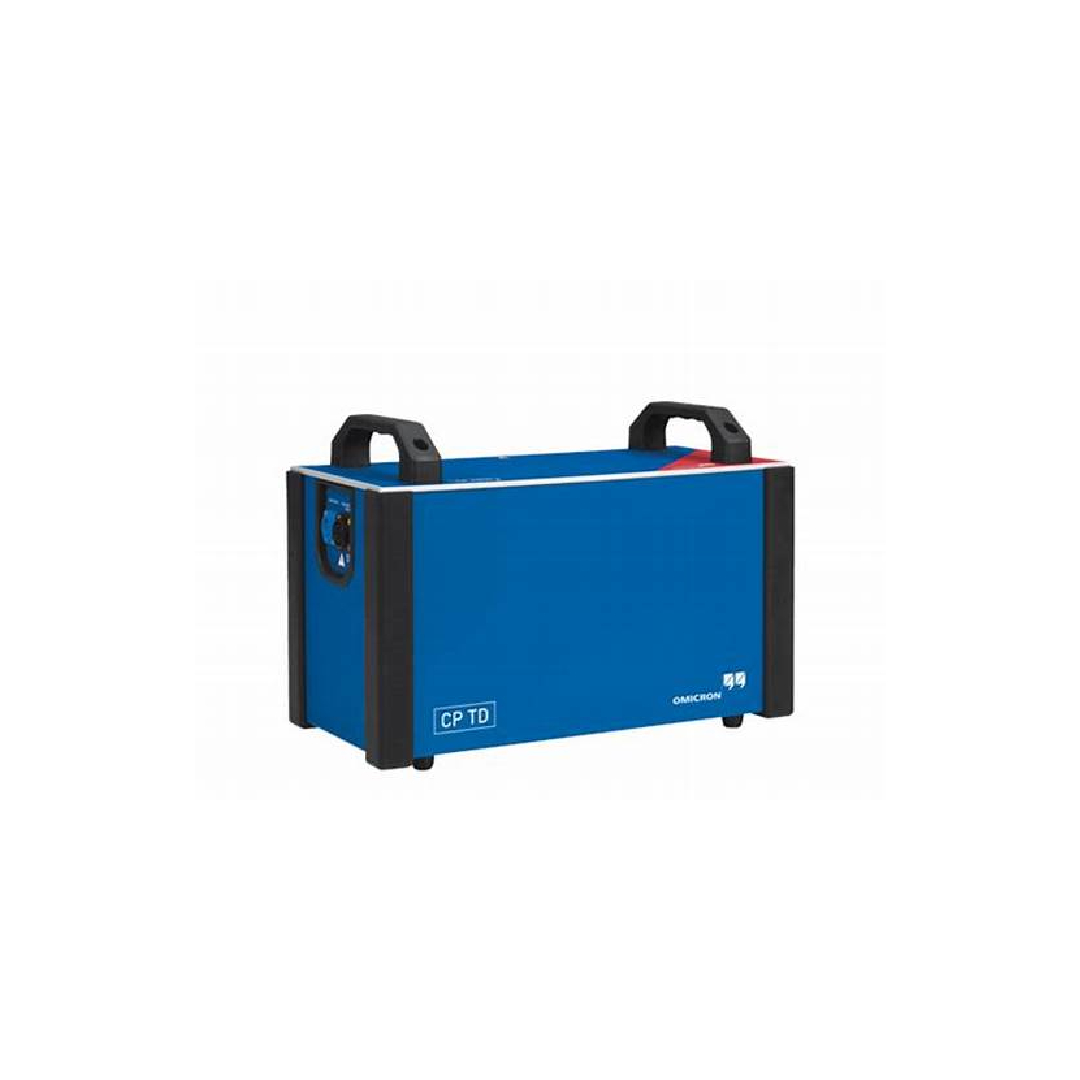

Omicron CP TD15

Primary Test Manager (PTM)
Diagnostic testing, condition assessment and data management of medium and high-voltage assets

Be faster, easier and safer
The Primary Test Manager™ (PTM) software supports you during diagnostic testing, condition assessment and data management of medium- and high-voltage assets, such as circuit breakers, rotating machines, grounding systems, instrument and power transformers as well as bushings and on-load tap changers (OLTC).
The software guides you through the entire test procedure, making testing faster, easier and safer. In addition, tests can be automatically assessed in accordance with the applicable international IEEE and IEC standards.

One solution for all your needs and applications
You can benefit from PTM in various respects:

• PTM ensures a reliable and fast approach by combining step-by-step guidance and a high level of automation
• PTM reduces the required training effort as numerous OMICRON test systems, such as CPC 100, TESTRANO 600, CIBANO 500, FRANEO 800 and DIRANA, can be operated with one common software
• PTM represents a central “database backbone” as the software allows it to maintain all asset and test data as well as data import of third party test results, for example, of DGA results

The mobile companion
The PTMate app is our mobile companion for the Primary Test Manager™ (PTM) software. It supports you on site by providing additional features on your smartphone, for example, sending images, displaying wiring diagrams, or sharing jobs and reports.
You can download the PTMate app free of charge in the App Store (for iOS) and in the Google Play Store (for Android).

Key features

• Asset-specific test plan generation
• Guided workflow for test set-up and execution without expert knowledge
• Automatic assessment according to industry standards
• Comprehensive and customized reports
• Import and export interfaces for easy data exchange
• Integrated asset data management in a local and client/server database

Applications

• Diagnostic tests on power transformers using CPC 100, TESTRANO 600, DIRANA, FRANEO 800
• Diagnostic tests on current transformers using CPC 100 and DIRANA
• Diagnostic tests on voltage transformers using CPC 100 and DIRANA
• Diagnostic tests on circuit breakers using CIBANO 500, DIRANA and CPC 100
• Diagnostic tests on rotating machines using CPC 100 and DIRANA
• Diagnostic tests on grounding systems using CPC 100
