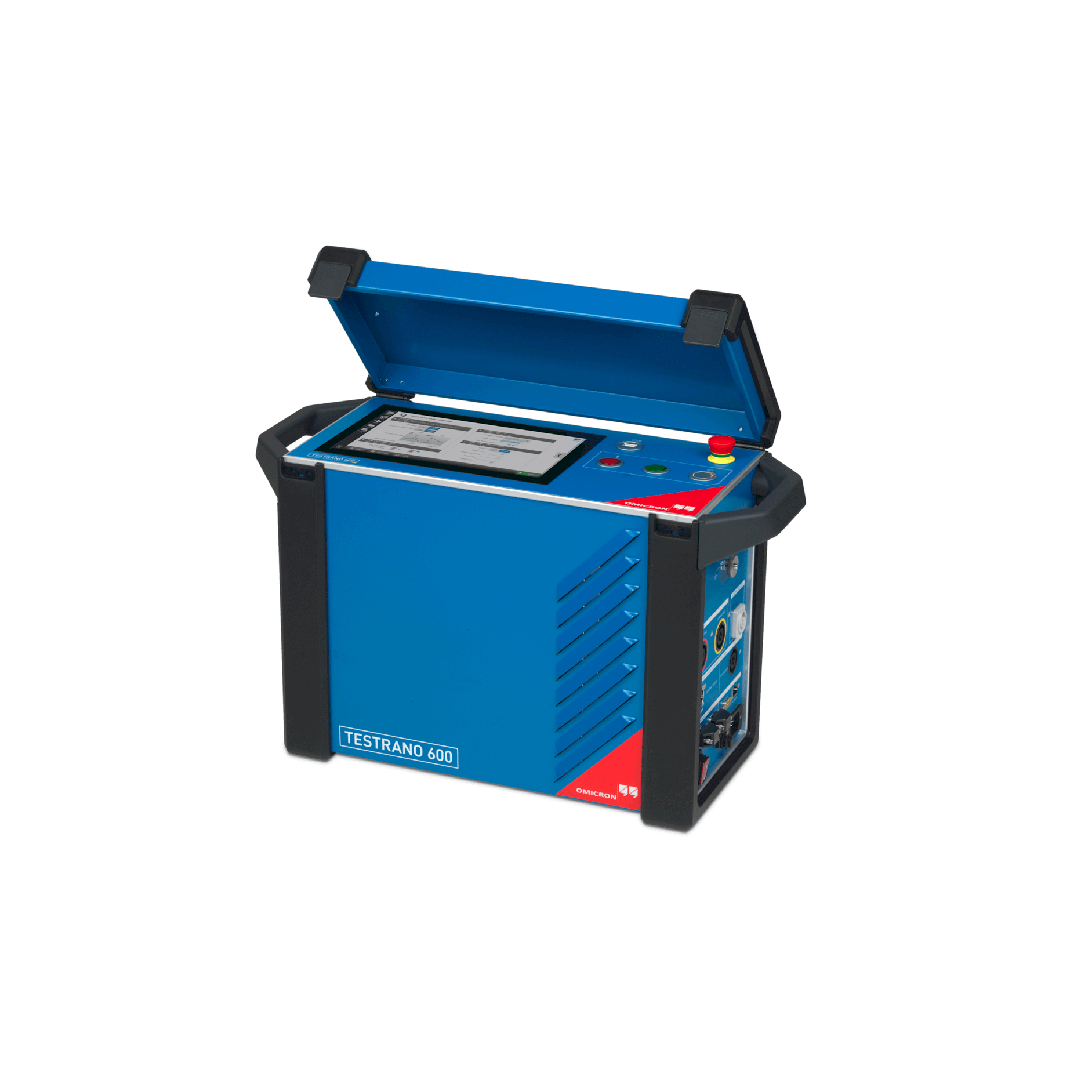

Omicron Testrano 600
Transformer Test System
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | $660.00 | $594.00 | $495.00 | $415.80 |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $4,620.00 | $8,316.00 | $14,355.00 | $12,474.00 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Contact us on 1300 601 670 for fantastic long term hire rates.
Powerful and compact solution
TESTRANO 600 is the world’s first portable, three-phase test system which supports all common electrical tests on
single- and three-phase power and distribution transformers for routine and diagnostic testing on-site or during
factory acceptance tests (FAT).
Using TESTRANO 600 enables you to perform various tests on power transformers without re-connecting. Thus, TESTRANO
600 cuts testing time down to one third compared to conventional single-phase test sets.
One system for multiple tests
Just three cables are needed to be connected to perform various tests with TESTRANO 600:
- Transformer Turns Ratio
- DC Winding Resistance
- Dynamic Resistance
- Demagnetization
- Short-Circuit Impedance / Leakage Reactance
- Frequency Response of Stray Losses
- OLTC Scan / Dynamic Resistance (DRM)
- Vector Group Check
- Cooldown Test
- Power Losses at Low Voltages
In order to perform power/dissipation, capacitance and exiting current measurements, you can combine TESTRANO 600 with the CP TD12/15 accessory.
Key features
- True three-phase power transformer test system
- Powerful device with 3 x 33 A DC or 400 V AC
- Reduced connection effort as the same connection can be used for various tests
- Three times faster testing
- Total weight of 20 kg / 44 lbs – ideal for on-site testing
