Phenix 6CB5010-3

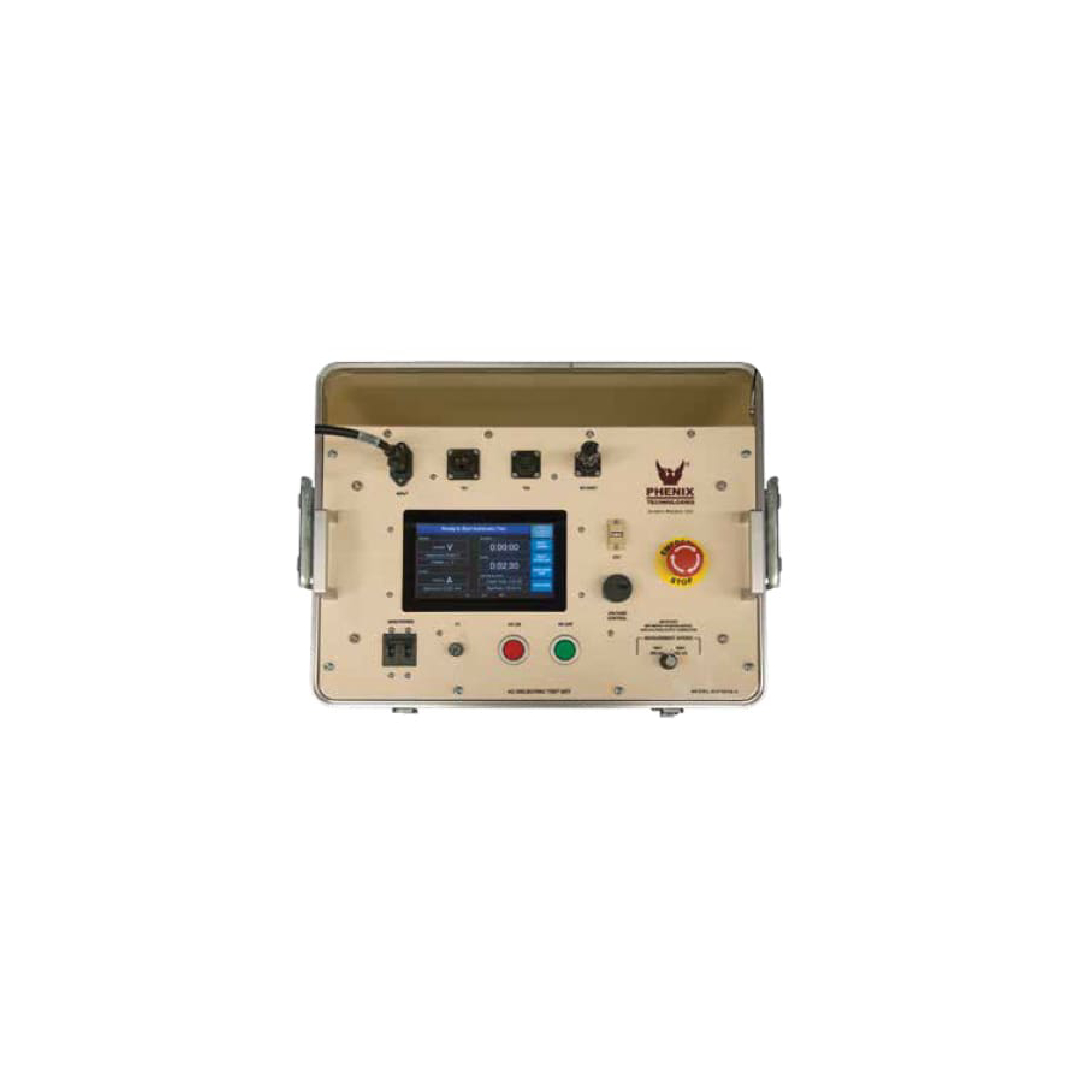

The Phenix 6CB50/10-3 Field and Lab AC Dielectric Test Set is a complete test system in a mobile package, simple to set-up and operate, lightweight and ruggedly constructed. It consists of a combination control and regulator enclosure and a separate high voltage section. The 6CB line features a 7" touch screen display with auto-ranging meters, automated operation, and data acquisition. This model offers an output range of ≈0-10 kV, 300 mA and ≈0-50 kV, 60 mA.
The Metering Guard Mode allows accurate measurements of the high voltage test specimen leakage current by bypassing stray capacitive currents. The high voltage section consists of a specially designed oil insulated high voltage transformer characterized by the use of an isolating cylindrical housing mounted on a rugged steel base. The high voltage output is equipped with a corona free aluminum shielding electrode. The high-quality design and construction are key to the superior partial discharge performance of the 6CB line.
The system arrives ready to use with all power and interconnect cables included; the simple setup allows this system to be ready for testing in minutes. The rugged construction and dependability, backed by long-term warranty make the 6CB line an ideal choice for your high voltage testing requirements.
