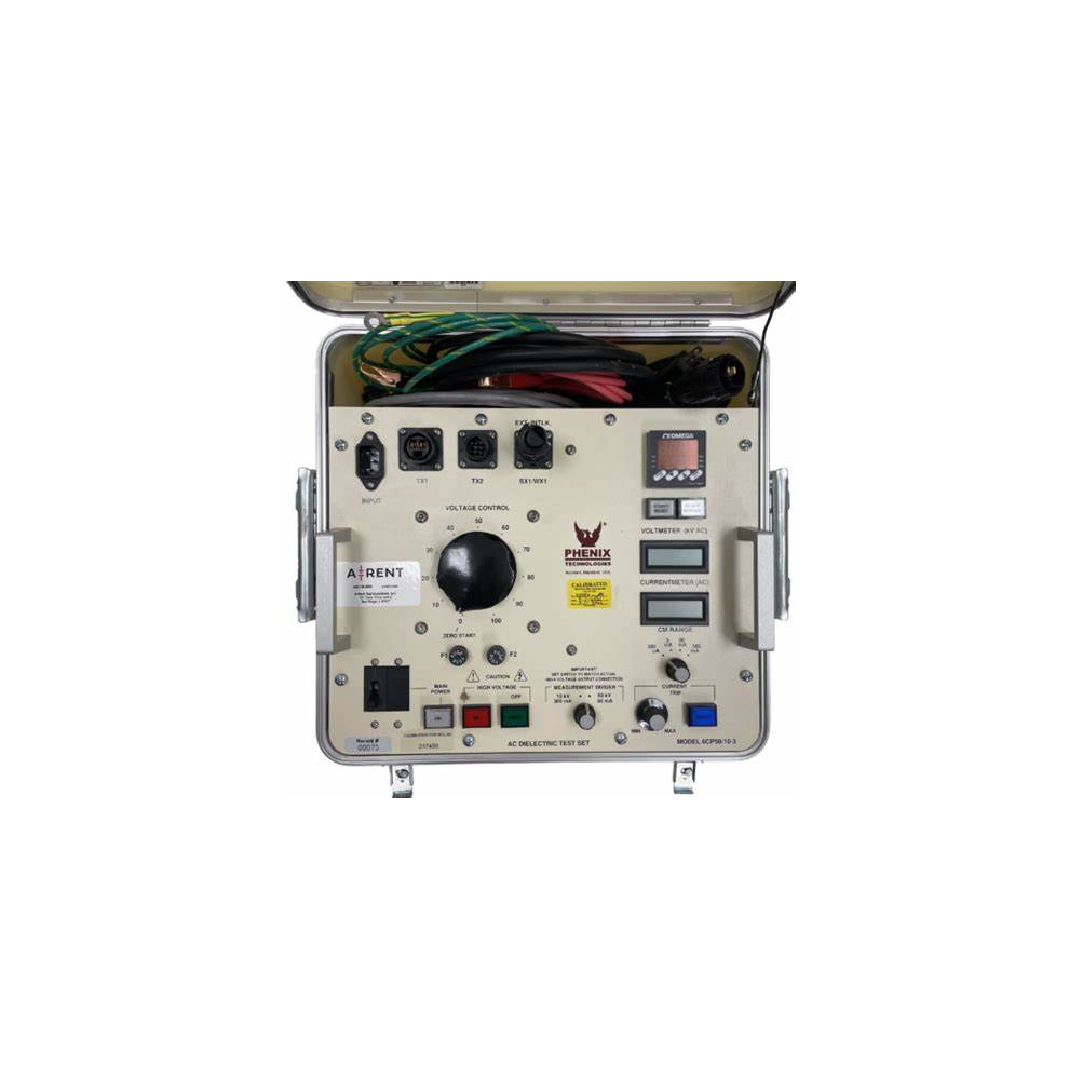

Phenix 6CP5010-3
AC 50KV HIPOT
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | $264.00 | $237.60 | $198.00 | $166.32 |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $1,848.00 | $3,326.40 | $5,742.00 | $4,989.60 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Contact us on 1300 601 670 for fantastic long term hire rates.
This portable rugged line of AC high voltage test equipment is ideally suited for use in the field or in the laboratory. The 6CP line offers a complete test system in a mobile package. All units in the 6CP line use a combination control and regulator enclosure and a separate high voltage section. The system is equipped with advanced digital metering, and control and protection devices which are easy to use and provide the operator with all necessary information to safely operate the system. The Metering Guard Mode allows accurate measurements of the high voltage test specimen leakage current by bypassing stray capacitive currents. The high voltage section consists of a specially designed oil insulated high voltage transformer characterized by use of an isolating cylindrical housing mounted on a rugged steel base. The high voltage output is equipped with a corona free aluminum shielding electrode. The high quality design and construction is key to the superior partial discharge performance of the 6CP line. The system arrives ready to use with all power and interconnect cables included; the simple setup allows this 6CP to be ready for testing in minutes. The rugged construction and dependability, backed by long-term warranty makes the 6CP line an ideal choice for your high voltage testing requirements.
Manufacturer Specs
| General Specifications | |||||||
| MODEL | 6CP30/15-3 | 6CP50/10-3 | 6CP100/50-7.5 | 6CP120/60-7.5 | 6CP100/50-10 | 6CP120/60-10 | 6CP200/100-10 |
| INPUT | |||||||
| Voltage/Current | 110-120V, 16A 220-240V, 8A |
110-120V, 16A 220-240V, 8A |
110-120V, 30A 220-240V, 15A |
110-120V, 30A 220-240V, 15A |
220-240V, 30A | 220-240V, 30A | 220-240V, 25A |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| OUTPUT | |||||||
| Voltage/Current | ≈0-15kV, 200mA ≈0-30kV, 100mA |
≈0-10kV, 300mA ≈0-50kV, 60mA |
≈0-50kV, 150mA ≈0-100kV, 75mA |
≈0-60kV, 125mA ≈0-120kV, 62.5mA |
≈0-50kV, 200mA ≈0-100kV, 100mA |
≈0-60kV, 166mA ≈0-120kV, 83mA |
≈0-100kV, 100mA ≈0-200kV, 50mA |
| DUTY CYCLES | |||||||
| 5 min ON/15 min OFF | 3kVA | 7.5kVA | 10kVA | ||||
| 15 min ON/1 hr OFF | 2kVA | 5kVA | 7.5kVA | ||||
| 1 hr ON/1 hr OFF | 1.5kVA | 3kVA | 5kVA | ||||
| FEATURES | |||||||
| Compensation | 50% Inductive Reactive | 66% Inducive + Selectable Capacitive Preload | 50% Inductive Reactive | ||||
| MeteringAccuracy | 0.8% Reading +.2% Full Scale | ||||||
| Voltmeter Range(s) | 0-15/30kV | 0-10/50kV | 0-50/100kV | 0-60/120kV | 0-50/100kV | 0-60/120kV | 0-100/200kV |
| Currentmeter Range(s) | 0-200µA/ 2mA/ 20mA/ 200mA |
0-200µA/ 2mA/ 20mA/ 300mA |
0-200µA/ 2mA/ 20mA/ 200mA | ||||
| Output | HV Electrode | ||||||
| PD | |||||||
| PD level | <10 pC | ||||||
| Optional up to 100kV | <3 pC | ||||||
| CABLES INCLUDED | |||||||
| Power Cable | 10’(3048mm) | 30’(9144mm) | |||||
| Power Interconnect | 10’(3048mm) | 20’(6096mm) | |||||
| Meter Interconnect | 10’(3048mm) | 20’(6096mm) | |||||
| Ground | 10’(3048mm) | (2) 20’(6096mm) each | (3) 30’(9144mm) ea | ||||
| Return | 10’(3048mm) | 20’(6096mm) | 10’(3048mm) | ||||
| Divider Metering | N/A | N/A | 30’(9144mm) | ||||
| Paralleling | N/A | N/A | 10’(3048mm) | ||||
| DIMENSIONS & WEIGHTS | |||||||
| Cart(s) LxWxH | Optional | Optional | 22.5”(572mm) x 29.25”(743mm) x 50”(1270mm) | ||||
| Cart(s) Weight | 61 lbs(28 kgs) | 70 lbs(32 kgs) | 61 lbs(28 kgs) | ||||
| Controls LxWxH | 16.5”(419mm) x 15.25”(388mm) x 11.25”(286mm) | 21.25”(540mm) x 16.75”(426mm) x 13.75”(349mm) | |||||
| Controls Weight | 30 lbs(14 kgs) | 52 lbs(24 kgs) | 63 lbs(29 kgs) | - | |||
| HV Tank(s) LxWxH | 14”(356mm) x 14”(356mm) x 17”(432mm) | 14”(356mm) x 14”(356mm) x 17”(432mm) | 16”(406mm) x 16”(406mm) x 30”(762mm) | 19”(483mm) x 19”(483mm) x 30”(762mm) | 19”(483mm) x 19”(483mm) x 53”(1346mm) | ||
| HV Tank(s) Weight | 76 lbs (34 kgs) | 80 lbs (36 kgs) | 178 lbs(81 kgs) | 255 lbs(116 kgs) | 280 lbs(127 kgs) | 280 lbs(127 kgs) | 240 lbs(109 kgs) 222 lbs(101 kgs) |
| HV Divider LxWxH | HV Divider is internal | 9”(229mm) x 9”(229mm) x 43”(1092mm) | |||||
| HV Divider Weight | 40 lbs(18 kgs) | ||||||
| Cables Weight | 6 lbs (3 kgs) | 20 lbs(9 kgs) | 30 lbs(14 kgs) | ||||
| Total Unit Weight | 112 lbs (51 kgs) | 116 lbs (53 kgs) | 311 lbs(141 kgs) | 388 lbs(176 kgs) | 443 lbs(201 kgs) | 443 lbs(201 kgs) | 656 lbs(298 kgs) |
| SHIPPING SIZES | |||||||
| Package 1 LxWxH | 21”(533mm) x 21”(533mm) x 16”(406mm) | 21”(533mm) x 21”(533mm) x 16”(406mm) | 34”(864mm) x 27”(686mm) x 56”(1422mm) | 34”(864mm) x 27”(686mm) x 56”(1422mm) | 34”(864mm) x 27”(686mm) x 56”(1422mm) | 34”(864mm) x 27”(686mm) x 56”(1422mm) | 34”(864mm) x 27”(686mm) x 56”(1422mm) |
| Package 1 Weight | 37 lbs (17 kgs) | 37 lbs (17 kgs) | 353 lbs(160 kgs) | 430 lbs(195 kgs) | 485 lbs(220 kgs) | 485 lbs(220 kgs) | 420 lbs(191 kgs) |
| Package 2 LxWxH | 20”(508mm) x 20”(508mm) x 20”(508mm) | 20”(508mm) x 20”(508mm) x 20”(508mm) | - | 34”(864mm) x 27”(686mm) x 56”(1422mm) | |||
| Package 2 Weight | 83 lbs (38 kgs) | 86 lbs (39 kgs) | 372 lbs(169 kgs) | ||||
| Package 3 LxWxH | - | 34”(864mm) x 27”(686mm) x 56”(1422mm) | |||||
| Package 3 Weight | 66 lbs(30 kgs) | ||||||
