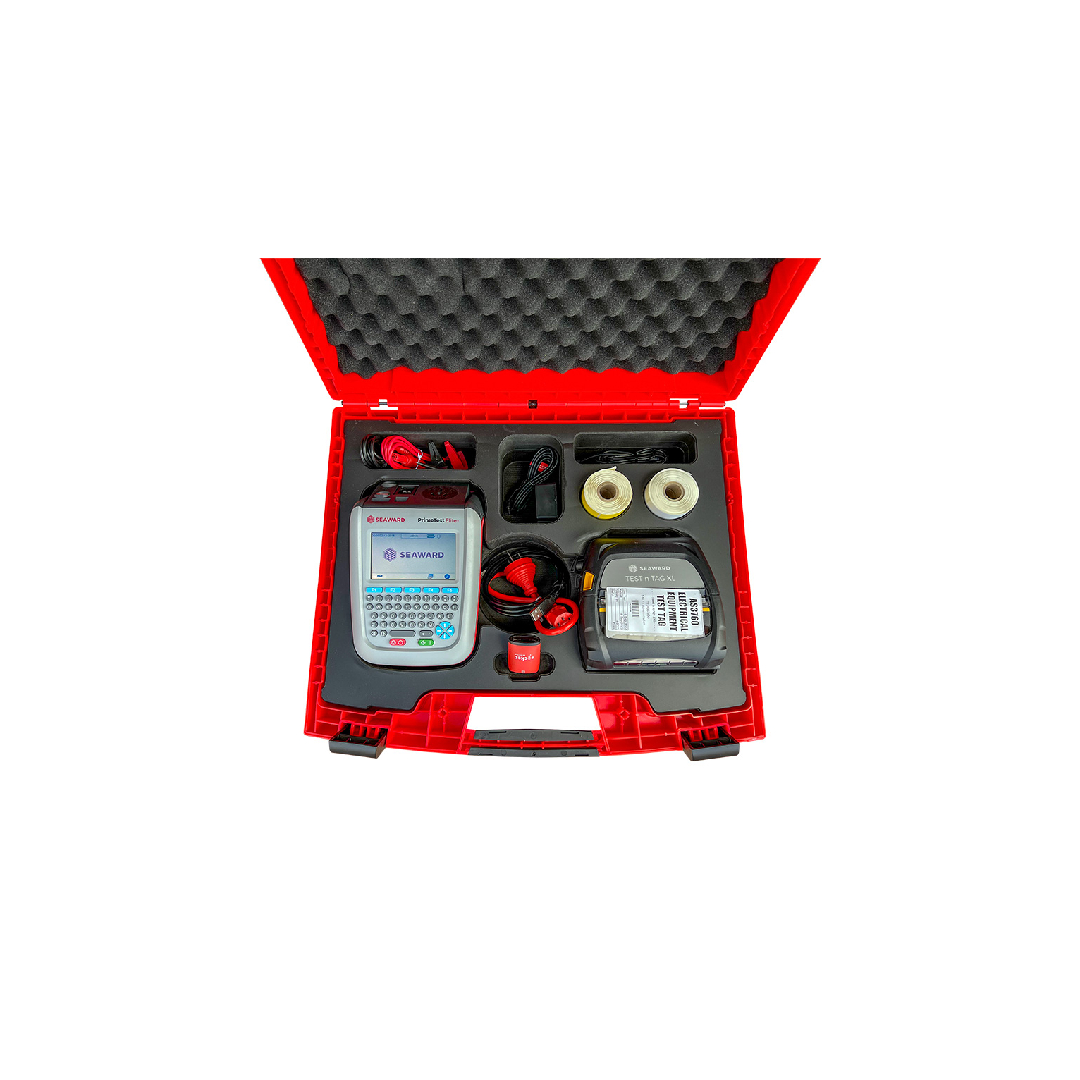

Seaward Electronic PrimeTest Elite Plus Kit
Test & Tag Printing System
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | $110.00 | $99.00 | $82.50 | $69.30 |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $770.00 | $1,386.00 | $2,392.50 | $2,079.00 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Committing to 3, 6 or 12 months?
Contact us on 1300 601 670 for fantastic long term hire rates.
Contact us on 1300 601 670 for fantastic long term hire rates.
The Primetest Elite-PLUS is the world's most advanced appliance & RCD tester. The in-built camera and
optional inspection modules covering emergency lighting, fire protection systems etc provide a platform
of unmatched capability.
Advanced features
-
High Definition Colour Display
-
QWERTY Keypad
-
In-Built Camera with Flash
-
USB for Data Up/Down Load
-
In-Built Isolation Transformer
-
Huge On-Board Memory: 50,000 assets and 2,000 asset photos
-
Optional PATGuard Elite Asset Management Software
-
Optional Data Logging of 3 Phase Leakage Tests Using PAC-TPL Adaptor
Â
PrimeTest Elite-PLUS
Â
Display High resolution colour LCD
Indication PASS/FAIL and measurement values
Operation QWERTY keypad
INSULATION TEST
Test Range 500V DC, 1Mohm at rated mains supply
Pass Level 1Mohm
EARTH CONTINUITY TEST
Test Current 200mA AC
Pass Level 1ohm
LEAKAGE TEST
Output Voltage 240V AC
Pass Level Class I 5mA, Class II 1mA
MOV DEVICES LEAKAGE TEST
Output Voltage 240V AC
Pass Level Class I 5mA, Class II 1mA
EXTENSION LEAD LEAKAGE TEST
Pass Level 1mA
Â
POLARITY TEST
Pass Indication live/neutral open circuit, short circuit & crossed
RCD TEST
Test Current 30mA sinusoidal, starting on a zero crossing at 0o - 180o
Pass Level 300ms
Memory 50,000 assets, 2,000 photos
Data Logging User defined inspection routines with library of measurement units for actual
results recording
Accessories earth bond clip, IEC adaptor
Interface Bluetooth to peripherals
Power Source Mains or battery
