Specialised force SLS-1-2T
2TONNE CABLE STAND
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | - | - | - | - |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $0.00 | $0.00 | $0.00 | $0.00 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Contact us on 1300 601 670 for fantastic long term hire rates.

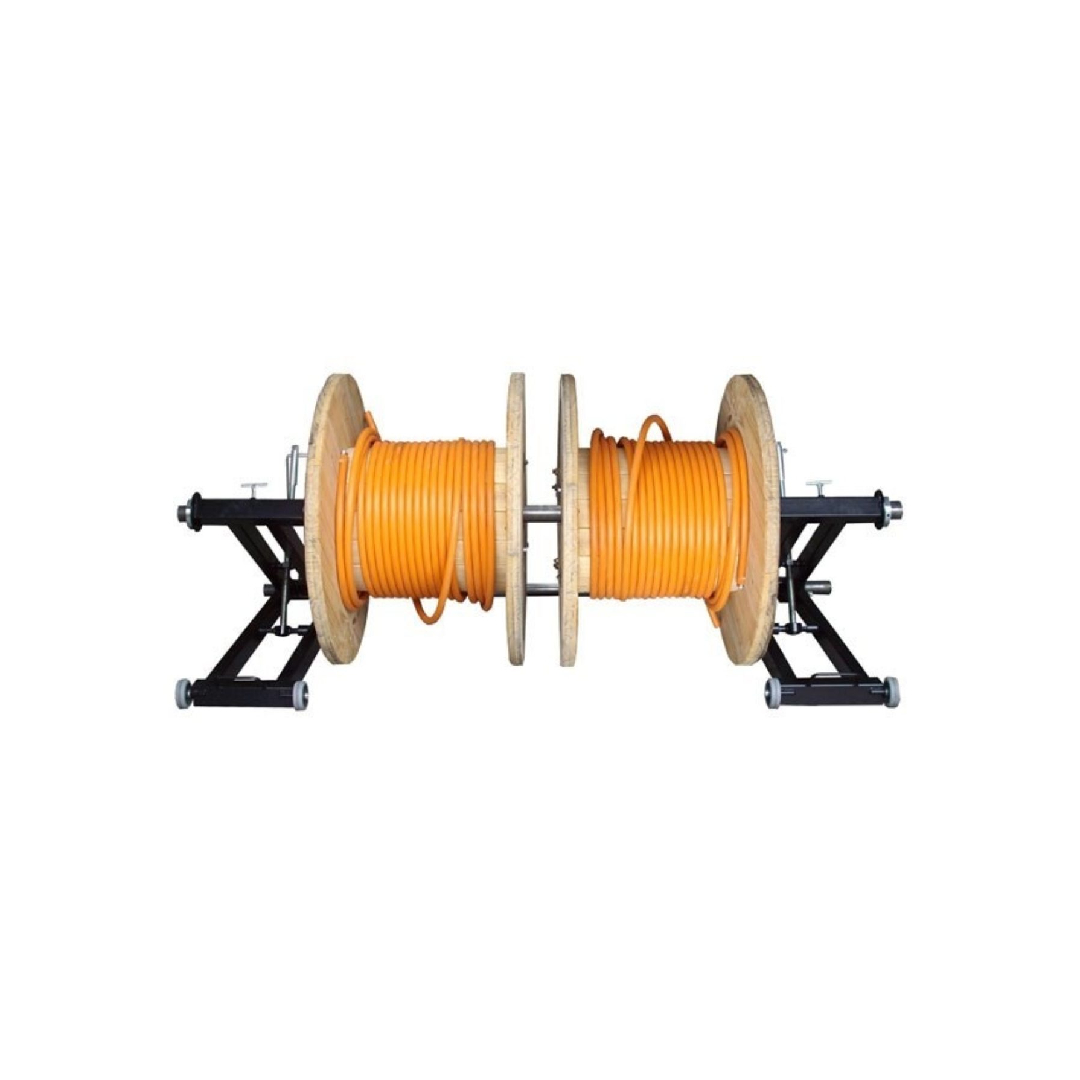

DESCRIPTION
The Scissor lift drum stands are well suited for uneven ground as the individual lifting screws can be adjusted
separately.
They are simple and easy to use and unlike their competition, sealed directional bearings (insert) aid the ease of
lifting and lowering of cable drums.
Complete with two stands with wheels for transportation, collars to retain drums and a ground joining bar for
rigidity during operation, along with a stamped and registered load bearing axle, the SLS is a very cost effective
and efficient set of equipment.
Scissor Lift Stand Set Contents
1 x Pair of assembled scissor type lifting frames. Each with their own individual serial number per pair
1 x Pair of drum retaining collars to suit supplied drum spindle, used to retain cable drum during operation
1 x Drum spindle to bare drum load, identifiable by unique serial number stamped at one end
1 x Ground joining bar, to align and install the scissor lift set correctly (NA for SLS-05T)
1 x Certificate of compliance for scissor lift set
1 x Certificate of compliance for drum spindle
1 x Risk Assessment guide
Model No. SLS1-2T
A - Overall Length 1380 mm
B - Folded Height 265 mm
C - Width 350 mm
D - Maximum Height 925 mm
E - Maximum Angle 55°
SPECIFICATIONS
- Working Load Limit 2000 Kg
- Max. Drum Size Ø1.6 m
- Usable Spindle Length 1600 mm
- Spindle Diameter Ø60mm
- Weight of Each Half 38 Kg"
